Product Details:
Payment & Shipping Terms:
|
Temperature: | Temperature Range -70 ~ 150 Deg C | Humidity: | 10%RH - 98%RH |
---|---|---|---|
Refrigerant: | R404A / R23 | Controller: | Touch Screen Controller |
Uniformity: | Temperature ≤0.2℃; Humidity ≤3%RH | Dehumidification: | Frozen Diving Dehumiditication Style |
Highlight: | Programmable Temperature And Humidity Chamber,Programmable Temperature Chamber |

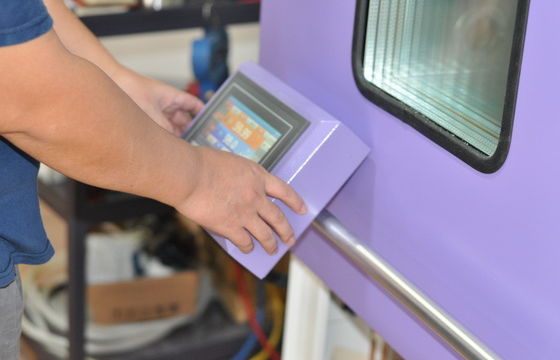

Programmable Temperature and Humidity Test Chamber with Overheating Protector
Brief Introduction:
Programmable Temperature and Humidity Test Chamber simulates different environments to test the resistance of heating, chilling, drying and humidity. Mainly used in the industries of electronics, instruments, vehicle, plastics, metal, hardware, food, chemicals, medical, etc.
Technical Specifications:
Model | ZKA-80L(B-G) | ZKA-150L(B-G) | ZKA-225L(B-G) | ZKA-416L(B-G) | ZKA-800L(B-G) | ZKA-1000L(B-G | |
Internal Dimension (mm) |
Depth | 400 | 500 | 500 | 700 | 1000 | 1000 |
Width | 500 | 600 | 750 | 850 | 1000 | 1000 | |
Height | 400 | 500 | 600 | 700 | 800 | 1000 | |
Exterior Dimension (mm) |
Depth | 930 | 1030 | 1080 | 1230 | 1530 | 1530 |
Width | 1310 | 1410 | 1620 | 1660 | 1810 | 1810 | |
Height | 830 | 910 | 1120 | 1210 | 1310 | 1000 | |
Volume (L) | 80 | 150 | 225 | 416 | 800 | 1000 | |
Using Environment | +5℃ ~ +35℃ / <85%RH | ||||||
Control Mode | Balanced Temperature/Humidity Adjust System | ||||||
Temperature Range | B:0℃ ~ +100(150℃) C:-20℃ ~ +100(150℃) D:-40℃ ~ +100(150℃) E:-50℃ ~ +100(150℃) F:-60℃ ~ +100(150℃) G:-70℃ ~ +100(150℃) |
||||||
Humidity Range | 10% ~98% RH (Optional 5%~98%RH) | ||||||
Uniformity | Temperature ≤0.2℃; Humidity ≤3%RH | ||||||
Temp Error | ≤2.0℃ | ||||||
Heating Time | 0℃ ~ +100℃ about 20 minutes -20℃ ~ +100℃ about 35 minutes -40℃ ~ +100℃ about 40 minutes -70℃ ~ +100℃ about 60 minutes |
||||||
Cooling Time | 20℃ ~ 0℃ about 20 minutes 20℃ ~ -20℃ about 45 minutes 20℃ ~ -40℃ about 60 minutes 20℃ ~ -70℃ about 90 minutes |
||||||
Materials |
Exterior: Cold-rolled sheet baking paint Interior: SUS#304 Stainless Steel Insulation: Rigid Polyurethane |
||||||
Cooling System | Forced air cooling/single phase compressor (-30℃) Forced air cooling, water cooling/double phase compressor(-40℃~ 70℃) |
||||||
refrigerator | Totally enclosed compressor | ||||||
chiller | Fin Type radiator | ||||||
refrigerant | R404A/R23/R507 | ||||||
Heating System | Stainless Steel Finned Heater | ||||||
humidification | Stainless Steel Heating Humidification, with protection of short water and overheating | ||||||
Dehumidification | Frozen diving dehumiditication style | ||||||
circulatory system | Forced Fan circulation Convection | ||||||
Water Supply | Water tank, automatic water supply control, circulation filter reusing, with water shortage alarm device. | ||||||
Water Quality | distilled water; Tank volume 20L | ||||||
Controller | Touch Screen Controller | ||||||
Safety Device | Over load protector switch; Compressor Overload protector, Over heating/humidity power off switch, water shortage alarm, humidification overheating protector, temperature overload alarm. | ||||||
Standard delivery | Viewing Window, Internal Chamber Illumination, Fame 2 pieces | ||||||
Power Supply | AC220V/1PH/50,60HZ; AC380V/50Hz/3Ph |
