Product Details:
Payment & Shipping Terms:
|
| Dimension: | Internal 50*75*60cm | Temperature: | -20℃, -40℃, -70℃~150℃ |
|---|---|---|---|
| Humidity: | 20%~98% RH | Temp Rate: | Heating 4℃/min, Cooling 1℃/min |
| High Light: | temperature controlled chamber,temperature and humidity chamber |
||

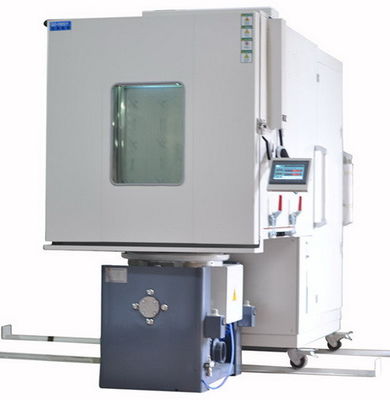

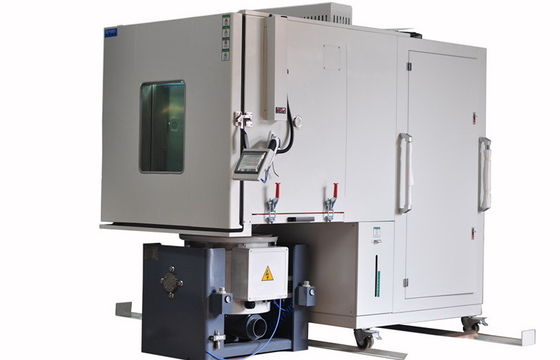

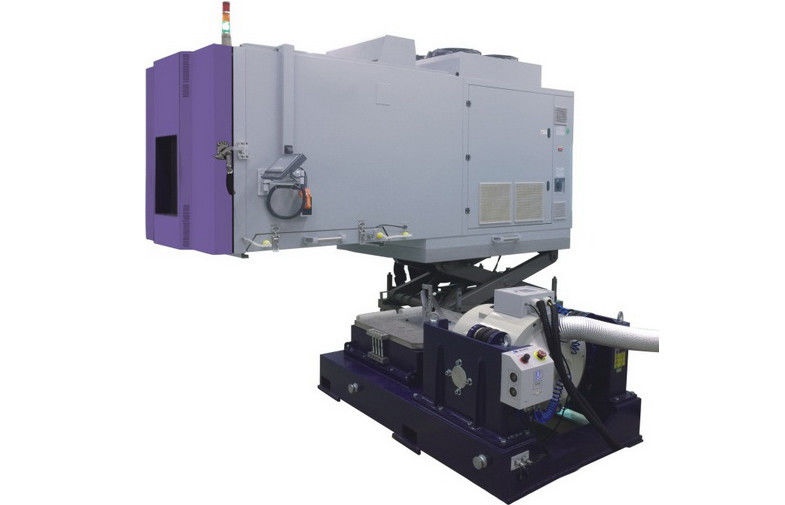

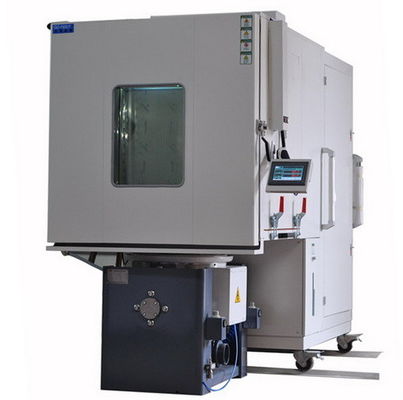

Temperature Humidity and Vibration Test Halt Chamber Combined Climatic Temperature Test
Product Overview:
Vibration combined climatic test chamber provides the change of temperature and humidity environment for the aerospace, aviation, petroleum, chemical, electronics, communications and other scientific research and production units.
In the test chamber, electric vibration stress according to the provisions of the cycle is applied to the sample, for the user of the machine (or components), electrical appliances, instruments, materials etc. temperature and humidity, vibration stress screening test, in order to assess product adaptability or experiment on behavior evaluation.
Vibration chambers offer rapid temperature change rates with combined temperature, humidity, and/or vibration environments.
These chambers are designed for compatibility with your choice of electrodynamic or mechanical vibration systems.
The Benchtop Vibration Table, ideal for vibration testing of small components or electronics and is designed for stand-alone testing or may be placed in an environmental chamber for combined temperature and vibration testing.
HALT/HASS Test Chambers provide extreme vibration and temperature capabilities in order to identify design and product weaknesses.
Features:
1, A combined structure of test chamber and refrigerating system boasting compact and graceful design; Independent console.
2, To make it convenient for operation; Original refrigerating compressor unit and its main accessories imported from abroad.
3, Imported LCD color touch screen controller capable of automobile control of temperature humidity programs;
4, With R232 interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool.
5, Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration.
Specifications:
| Model | QZH-225 | QZH-800 | QZH-1000 |
| Internal Dimension W×H×D(cm) |
50*75*60 | 100*100*800 | 100*100*100 |
| External Dimension W×H×D(cm) |
80*171*157 | 130*186*187 | 130*186*187 |
| Temperature Range | -20℃, -40℃, -70℃~100℃(150℃) | ||
| Humidity Range | 20%~98% Relative Humidity (Optional 10%-98%RH, 5%-98% RH) | ||
| Uniformity of temperature and humidity | ±2.0℃; ±3.0%RH | ||
| Accuracy of temperature and humidity | ±0.5℃; ±2.5%RH | ||
| Temperature Rising/ Falling Speed Rate | Temperature rising approx.4℃/min Temperature cooling 1℃/min; | ||
| Internal and External Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | ||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||
| Cooling System | Wind cooling or water cooling/single segment compressor(-40degree, double segment compressor -70degree) | ||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over- humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
||
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional), Water Purifier, Dehumidifier | ||
| Vibration Test Equipment | Choose proper vibration test bench according to customer's test condition , the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference |
||
| Power | AC220V/50Hz/1Ph, AC380V/50Hz/3Ph/5 Wires | ||
