| Model: | PHB-150 | Name: | Portable Metal Hardness Tester |
|---|---|---|---|
| Test Force: | 1580Kgf | Indenter: | 7.26mm Steel Ball Indenter |
| Hardness: | Range 100~650HBW | Open Space: | 150x100mm (Throat Depth) |
| High Light: | Portable Hardness Tester Brinell,1580Kgf Portable Hardness Tester,Handheld Brinell Hardness Tester |
||

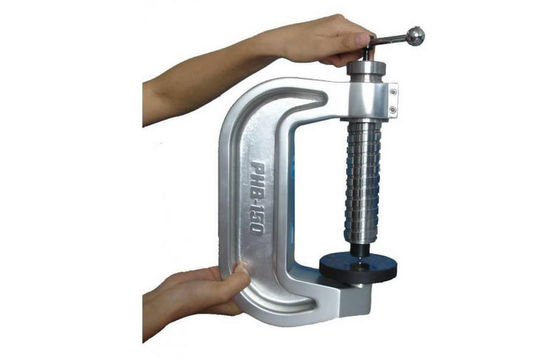

Portable Hardness Tester Static Pin Brinell Hardness Tester With Test Force 1580Kgf
Features:

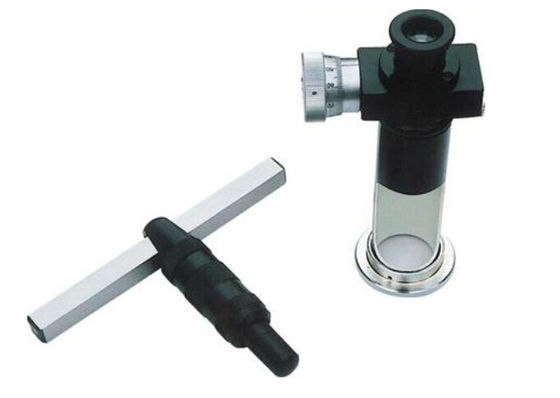

The PHB-150 Pin Static Brinell hardness tester is designed following the Brinell hardness test method. The test force is controlled by a shear pin. After reading the diameter of the indention with the reading microscope, the Brinell hardness value can be obtained from the look up table.

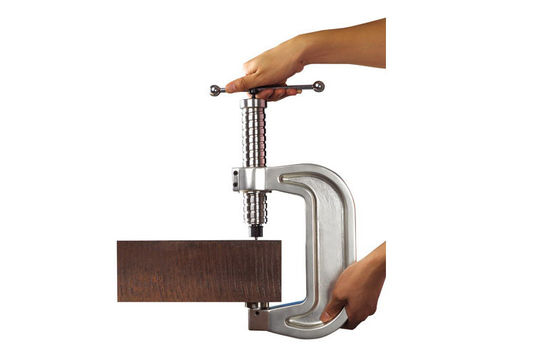

This kind of pin Brinell hardness tester is especially suitable for assemblies inconvenient to be taken to the lab and not allowed to be cut.
Applications:
Used to test the hardness of forgings, castings, steels, nonferrous metal and its alloy products, and to test the hardness of annealed, normalizing and tempered mechanical parts.
Advantages:
Compared to the rebound type hardness tester, the pin Brinell portable hardness tester has many advantages such as higher precision, fewer factors affecting accuracy and lower requirement on the surface roughness.
The test result meets the requirements of most drawings without conversion and is more widely accepted in the international business.
Technical Specifications:
| Test Force | 1580 kgf |
| Indenter | 7.26mm Steel ball indenter, test range 100~350HBW |
| 4mm Carbide ball Indenter,test range 350~650HBW | |
| Indicator Error | ≤2~3% Comply with ISO, ASTM |
| Repeatability Error | ≤2~3% Comply with ISO, ASTM |
| Test Range | 100~650HBW |
| Opening dimension | 150mm(Height) x100mm(Throat Depth) |
| Packing Weight | 7.2 kg |
