| Mechanical Structure: | Brand New Mechanical Structure Design With A Sturdy Frame | Indenter Lifting: | Movable Head Structure With Linear Guide Rails |
|---|---|---|---|
| Driven Motor: | Driven By High-precision Motors, Enabling Faster And More Accurate Loading And Unloading | Fixed Worktable: | Fixed Worktable Reduces Coaxiality Errors Caused By The Vertical Movement Of The Screw |
| Working Space: | Large Operation Platform Space, Suitable For Measuring Large Parts And For Replacing Large Worktables | Intelligent Control: | Full-process Intelligent Control, Including Segmented Force Application, Smooth Speed Variation, And High-precision High-speed Step Control |
| Highlight: | 2000mT Non Destructive Testing Equipment,180g Non Destructive Testing Equipment,Handheld Gaussmeter Gauss Meter |
||
Precision Digital

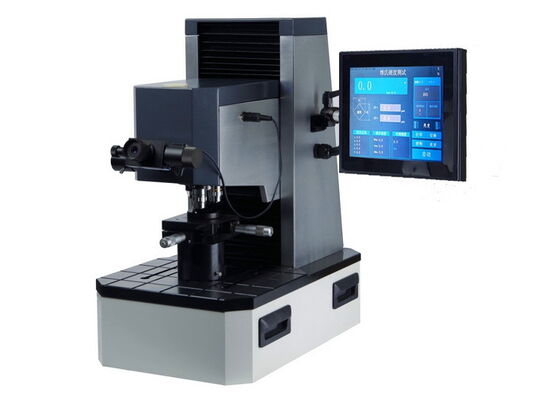

Automatic Turret Vickers Hardness Tester JMHVS-10AT with Force Value Curve
Download Technical Data: Vickers Hardness Tester JMHVS-10AT
Brief Introduction:
The iqualitrol JMHVS-10AT Vickers Hardness Tester features a novel and attractive design, with a test indenter that can move up and down, making it especially suitable for testing large-sized workpieces. It also offers good reliability, operability, and intuitiveness.
JMHVS-10AT uses computer software programming, a high-magnification optical measurement system, and sensor closed-loop control technology. The software allows the selection of test force and dwell time, and supports hardness value conversion.
On the color touch display, it can show the test method, test force, indentation length, hardness value, test force dwell time, number of measurements, test results, and data processing, with output via a printer.
The iqualitrol JMHVS-10AT equipped with an automatic indentation image analysis system, capable of photographing and measuring the tested indentations and the material's metallographic structure. It is suitable for measuring the Vickers hardness of tiny or thin specimens, surface plating layers, and for determining the Vickers hardness of brittle materials such as glass, ceramics, agate, and gemstones.
Technical Specifications:
| Model | JMHVS-5AT | JMHVS-10AT | JMHVS-30AT | JMHVS-50AT |
| Test force (kgf) | 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 | 0.3, 0.5, 1, 2, 2.5, 3, 5, 10 | 0.5, 1, 2, 3, 5, 10, 20, 30 | 1, 2, 3, 5, 10, 20, 30, 50 |
| Loading method | Automatic loading and unloading | |||
| Dwell time | 5-60 seconds | |||
| Turret | Automatic turret | |||
| Test mode | HV/HK | |||
| Objectives | 10x, 20x | |||
| Digital Eyepiece | 10x | |||
| Resolution | 0.1um | |||
| Vertical space | 215mm, max height of specimen | |||
| Depth throat | 155mm | |||
| Hardness conversion | Conform ASTM E 140 | |||
| LCD Display | Force Curve, Options, Database, Control, Loading Start, Lighting Adjustment, Object Switching | |||
| Value Display | D1, D2 value; HV, HK indication; hardness value; conversion value; test times; dwell time | |||
| Light source | LED light | |||
| COM port | RS232 | |||
| Executive Standards | JJG151, GB/T 4340, ISO/DIN6507, ASTM E-384 | |||
| Power Supply | AC90-240V/50Hz | |||
| Dimension & weight | 550*340*600mm, 85Kg | |||
Main Features:
1. Brand new mechanical structure design with a sturdy frame;
2. Movable head structure with linear guide rails;
3. Driven by high-precision motors, enabling faster and more accurate loading and unloading;
4. Fixed worktable reduces coaxiality errors caused by the vertical movement of the screw;
5. Large operation platform space, suitable for measuring large parts and for replacing large worktables;
6. Capable of remote control, simple to operate;
7. Full-process intelligent control, including segmented force application, smooth speed variation, and high-precision high-speed step control.
