| Cutting Wheel: | 350 * 2.5 * 32mm | Speed: | 100-2800rpm, Adjustable |
|---|---|---|---|
| Cutting Mode: | Manual Cutting And Automatic Cutting | Cutting Platform: | 300 * 290mm |
| Cut Section: | Cylinder Specimens With Diameter Less Than 100mm | Cube Specimens: | With Height Less Than 120mm, Depth Less Than 200mm |
| High Light: | precision cutting machine,abrasive cutting machine |
||

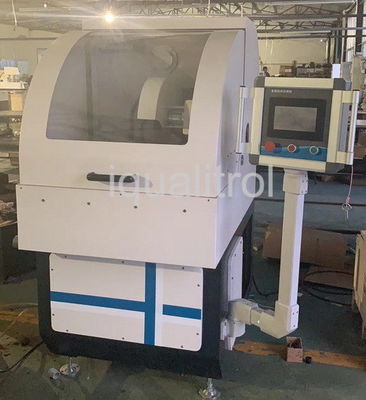

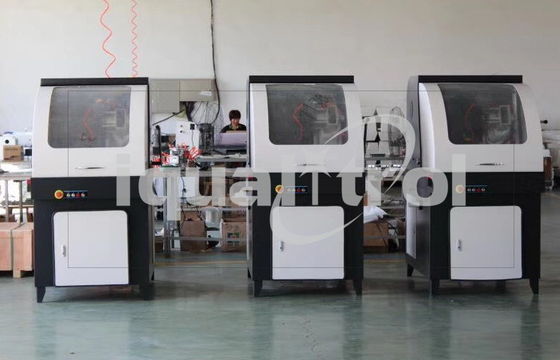

Double Cutting Wheel Automatic Specimen Cutting Machine with Water Cooling
Model: Metall‐100
Technical Data Download: iqualitrol Metallographical Specimen Cutting Machine Metall‐100
Brief Introduction:

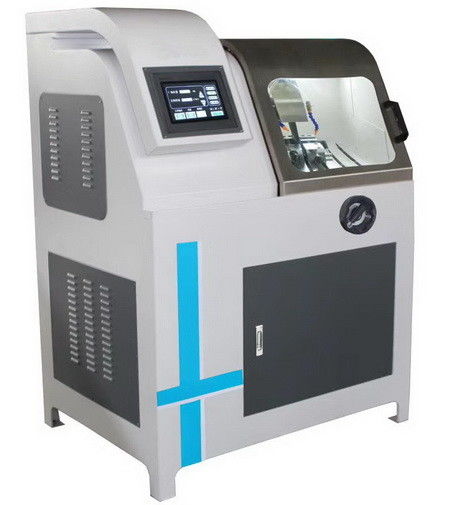

iqualitrol Metall-100 equips with touch screen, and all the cutting parameters can be set previously. It can cut cylinder specimens with diameter less than 100mm; cube specimens with height less than 120mm, depth less than 200mm.
Self circulation cooling tank can be used to cool specimens during cutting to avoid damage metallographical structures.
Cutting feed speed can be set by different materials, to improve cutting quality. This model combines manual cutting and automatic cutting modes, largely widen its application.
Double Cutting Wheel:
Technical Specifications:
| Power Supply | AC380V/50Hz/3Ph/4Wires |
| Rotation Speed of Main Axis | 100-2800rpm, adjustable |
| Cutting Wheel | 350 * 2.5 * 32mm |
| Max Cutting Capacity | Cylinder diameter 100mm, automatic cutting speed 0.1-3.0mm/min, Can choose interval cutting and continuous cutting. |
| Max Cutting Space | 120 * 200mm |
| Motor | 3KW, AC380V/50Hz/3Ph |
| Cutting Platform | 300 * 290mm |
| Dimension |
950 * 980 * 1250mm |

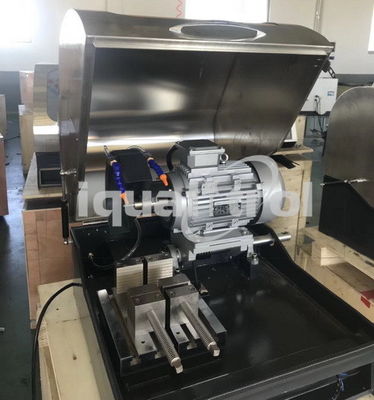

Specimen Clamp:
