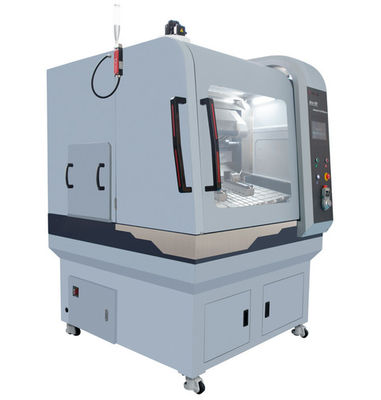

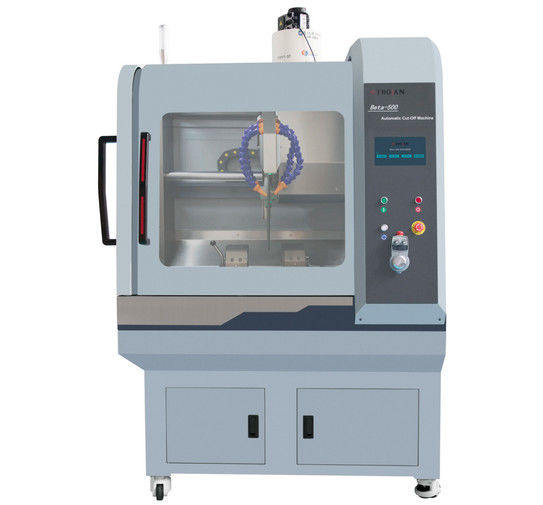

Fully Automatic Large-scale Vertical Metallographic Cutting Machine IQUALITROL AC-500

Fully Automatic Large-scale Vertical Metallographic Cutting Machine IQUALITROL AC-500
Fully Automatic Large-scale Vertical Metallographic Cutting Machine IQUALITROL AC-500 Fully Automatic Large-scale Vertical Metallographic Cutting Machine IQUALITROL AC-500 Fully Automatic Large-scale Vertical Metallographic Cutting Machine IQUALITROL AC-500 Fully Automatic Large-scale Vertical Metallographic Cutting Machine IQUALITROL AC-500

Large Image :  Fully Automatic Large-scale Vertical Metallographic Cutting Machine IQUALITROL AC-500

Product Details:
Brand Name: iqualitrol
Model Number: IQUALITROL AC-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Detailed Product Description
Model: IQUALITROL AC-500 Table Control: XYZ 3-axis Fully Automatic Control
Cutting Mode: Vertical Cutting/horizontal Cutting/segment Cutting/continuous Cutting Water Tank: Floor Standing Water Tank With Large Volume, Easy To Remove For Cleaning
Cutting Capacity: Φ190mm For Cylinder Sample Cutting Blade: Φ508mm, Rotation Speed 500-2500rpm
Highlight:

Non Destructive Testing Equipment 1Kgf

,

Multifunctional Non Destructive Testing Equipment

,

1Kgf Digital Force Gauge Meter



Fully Automatic Large-scale Vertical Cutting Machine
IQUALITROL AC-500


Technical Specifications:

Model IQUALITROL AC-500
Cutting blade Speed 500-2500rpm
Diameter Φ508mm
Center hole Φ32mm
Electronic Input 3x380V/50Hz+Neutral+Ground
Cutting Power 15KW(S1)
Cutting capacity Maximum diameter Φ190mm
Maximum square section 190x360mm
Smart cutting Cutting mode Vertical cutting/horizontal cutting/segment cutting/continuous cutting/angle cutting (optional)
Feeding method Constant speed cutting/ Pulse cutting/ Automatic speed control
Table Dimension 832x728mm(WxD)
T-Slot Size 12mm
Travel Z-direction (vertical): 330mm, Y-direction (front-back): 500mm; X-direction (left-right): 550mm
Angle Cutting (Optional) Bench size Φ600mm
Number of automatic cuts 20
Recirculating Tank Capasity 200L
Dimensions 1500x900x650mm(WxDxH)
Connector Inlet: Φ19 inner diameter high-pressure pipe; Outlet: Φ80 inner diameter hose
Flow rate 100L/min
Filtration Method Paper tape + magnetic separator
Accuracy 30um
Oil mist collector (optional) Power 0.37KW
Air volume 600m3/h

Weight
Host 1450kg
Recirculating Tank 155kg



Features:
1. XYZR four-axis fully automatic control. R-axis (rotation/angle) is optional.
2. It can realize multi-segment continuous cutting on the X-axis (R-axis), with equal thickness (angle), or at any specified position;

3. Extra large work surface and cutting chamber; work surface size reaches 728x832mm. The cutting chamber size reaches 1248x1220mm and the height is 900mm.

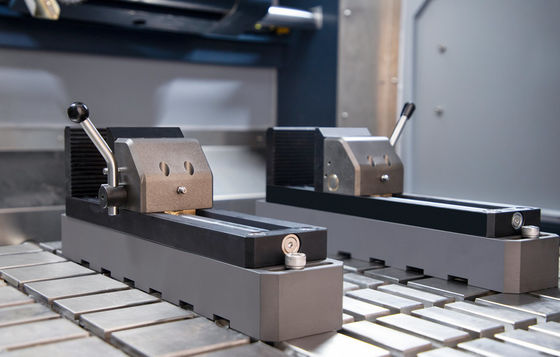

4. Can clamp ultra-long specimens that run through the left and right sides;

5. Simulation function of cutting route;
6. Equipped with a wireless handwheel to control the movement of four axes to achieve rapid tool setting;

7. The one-piece cast aluminum base and reliable powder coating ensure durability and no rust;
8. 10-inch large touch screen;

9. Floor standing water tank with large volume, easy to remove for cleaning;

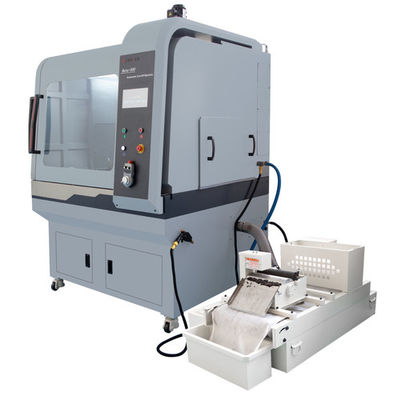

10. Equipped with magnetic separator and paper tape filtration system, Laser tool setting device.
