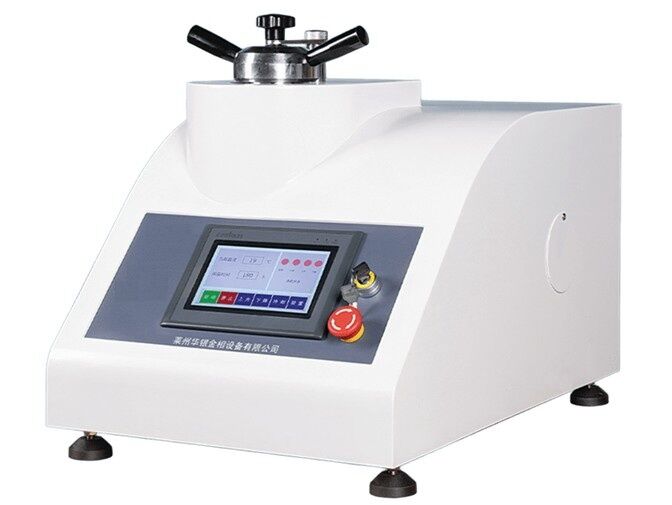

Automatic Hot Mounting Press iPress-5H with Touch Screen Control
Brief Introduction:
The iqualitrol iPress-5H automatic embedding machine is suitable for embedding small, hard-to-hold, or irregular metallographic and petrological samples, facilitating cutting or grinding and polishing, followed by metallographic, spectral testing, or hardness testing.
The machine is fully controlled by an integrated system, with a hydraulic system for pressure application, featuring efficient heating and water cooling systems, durable and long-lasting.
It automatically releases pressure and stops after sample preparation is complete, equipped with a 7-inch color touchscreen for simple and quick operation, eliminating the need for an operator to be present beside the equipment.
Technical Specifications:
| Model | iPress-5H |
| Sample pressing diameter |
Four specifications: φ25, φ30, φ40, φ50 (Other specifications can be customized) |
| Power supply | AC220V 50Hz |
| System pressure range | 1.5~2.5MPa |
| Corresponding sample preparation pressure range | 0~72MPa |
| Cooling method | Water cooling |
| Insulation time adjustable range | 0~99min |
| Total power | 1100W |
| Temperature setting range | Room temperature~190℃ |
| Dimensions | 670mm×450mm×550mm |
| Net weight | 110kg |
