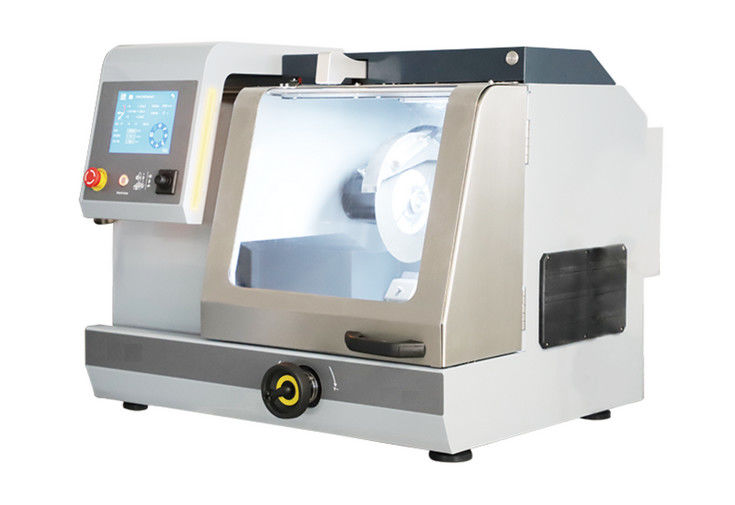

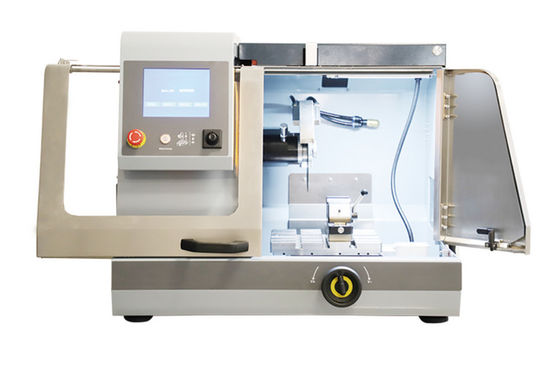

Large Worktable Metallographic Automatic Cut-off Machine with Touch Screen Controller

Large Image : Large Worktable Metallographic Automatic Cut-off Machine with Touch Screen Controller

Product Details:

Brand Name:	iqualitrol
Model Number:	AC-250

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Box
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	5 sets per month

Contact Now

Detailed Product Description

Model:

AC-250

Control Of XYZ:

Fully Automatic Control Of XYZ Axes

Worktable:

Extra-large Worktable 300*280mm

Cutting Capacity:

Φ85mm For Cylinder Samples

Highlight:

High Accuracy Non Destructive Testing Equipment

Digital Non Destructive Testing Equipment

20Kgf Electronic Force Gauge

Large Worktable Automatic Cut-off Machine iqualitrol AC-250 for Sample Preparation with Touch Screen Controller

Technical Data Download: iqualitrol Cutting Machine AC-250

Brief Introduction:

AC-250 is a fully automatic cutting machine, suitable for cutting various metal materials, ceramics, quartz glass and petrographic samples, etc.

AC-250 can realize fully automatic cutting of multiple sections with different thicknesses in XYZ three axes.

Features:

1. Fully automatic control of XYZ axes;

2. Extra-large worktable and cutting chamber, the size of the worktable is 300*280mm;

3. Opening on both sides for extra-long specimens;

4. 8" Touch-Screen user interface;

5. Laser tool setting device.

Technical Specifications:

Model		AC-250
Cutting wheel	Speed	1000-3000rpm
	Diameter	Φ254mm
	Hole-distance	Φ32mm
Electricity	Input	3x380V/50Hz+Neutral+Ground
Electricity	Power	3.8KW
Cutting capacity	Maximum diameter	Φ85mm
Cutting capacity	Maximum square section	85x250mm
Intelligent cutting	Cutting mode	Vertical cutting / horizontal cutting
Intelligent cutting	Feeding method	Constant speed cutting
Travel	Feeding method	Y direction (front-back): 250mm; X direction (left-right): 100mm
Working table	Dimension	280x300mm (W*D)
Working table	T-Slot	12mm
Dimensions	WxDxH	930x900x720mm
Weight		250kg
