| Features: | With Separated Cutting And Grinding Chambers | Main Application: | Cutting Various Types Of Rock To Observe Petrographic Textures |
|---|---|---|---|
| Cutting Blade: | Φ250×Φ32×2mm | Working Table: | 300×270mm |
| Grinding Size: | 60×90mm | Cooling Type: | Water Tank 60L |
| Highlight: | non destructive testing machine,portable surface roughness tester |
||

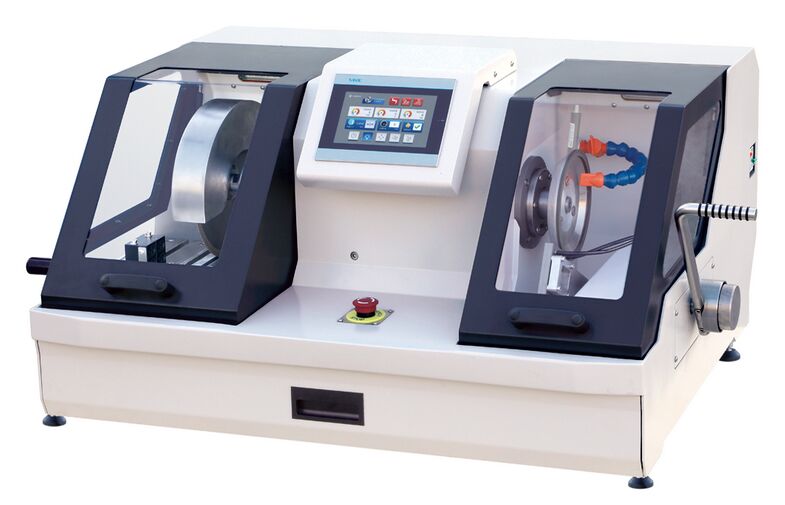

Petrographic Thin Section Cutting Grinding Integrated Machine iCut-871
Download Technical Data: Cutting Grinding Integrated Machine iCut-871
Brief Introduction:
The iqualitrol iCut-871 is suitable for cutting various types of rock to facilitate the observation of petrographic textures.
It features separate cutting and grinding chambers, equipped with a cooling system; the use of coolant effectively dissipates the heat generated during cutting, thereby preventing overheating and thermal damage to the sample microstructure.
The machine is easy to operate, safe, and reliable, making it an essential piece of equipment for preparing samples in industrial plants, research institutions, and laboratory settings at colleges and universities.
Technical Specifications:
| Model | iCut-871 |
| Input Power | Single-phase AC 220V 50Hz |
| Input Power | 2.5KW |
| Cutting disc diameter | Φ250mm |
| Cutting spindle diameter | Φ20mm |
| Cutting disc size | Φ250×Φ32×2mm (customizable to Φ250×Φ25.4×2mm) |
| Grinding disc diameter | Φ175mm |
| Polishing pad rotational speed (Stepless speed control via knob) |
0-3000r/min |
| Water supply pipe | Outer diameter Φ21mm interface |
| Drain pipe | Inner diameter Φ32mm |
| Workbench dimensions | 300×270mm |
| Cutting Worktable Travel/Type of Motion | 200mm/manual |
| Grinding Worktable Travel/Type of Motion | 10 mm/manual (accuracy: 0.01 mm) |
| Grinding suction cup size | 60×90mm |
| Fixed suction cup | 60×45 mm (two 30×45 mm slides) |
| Horizontal Transfer Suction Cup (Optional) | 60×45 mm (stroke 10 mm, accuracy 0.01 mm) (Slides: four pieces of 30×45 mm and two pieces of 60×45 mm) |
| Lighting | LED |
| Water tank | 60L (integrated vacuum pump and vacuum separator) |
| External dimensions | 1233×770×548 |
| Net weight | 126Kg |
Grinding disc size:
