| Preliminary: | Loading Force 3Kgf | Loading Control: | Manual Loading And Unloading |
|---|---|---|---|
| Reading: | Hardness By Dial Gauge 0.5HR | Vertical Space: | 170mm |
| Throat: | 135mm | HR 15 Y Scale: | For Very Soft Abradable Coatings |
| High Light: | digital rockwell hardness tester,hardness testing instruments |
||

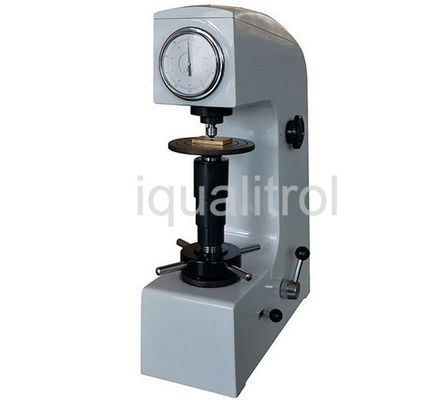

Resolution 0.5HR Manual Rockwell Superficial Hardness Testing Machine for Thin Materials
Model: HRM-45
Brief Introduction:
iqualitrol Rockwell Superficial hardness test method consists of indenting the test material with a diamond cone (N scale) or hardened steel ball indenter. The indenter is forced into the test material under a preliminary minor load usually 3 kgf.
When equilibrium has been reached, an indicating device that follows the movements of the indenter and so responds to changes in depth of penetration of the indenter is set to a datum position. While the preliminary minor load is still applied an additional major load, is applied with resulting increase in penetration.
When equilibrium has again been reach, the additional major load is removed but the preliminary minor load is still maintained. Removal of the additional major load allows a partial recovery, so reducing the depth of penetration. The permanent increase in depth of penetration, resulting from the application and removal of the additional major load is used to calculate the Rockwell Superficial hardness number.
Application range:
Rockwell superficial scales are used to test materials too thin or small for the regular scales or outside the regular ranges.
Generally Diamond Indenters are used for hard materials while Ball Indenters are used on soft materials.
The HR 15 N scale is useful for testing hard thermal spray coatings like ceramics and carbides, while at the other extreme the HR 15 Y scale is used to test very soft abradable coatings.
Technical Specification:
| Model | HRM-45 |
| Initial Test Force | 3kgf (29.42N) |
| Total Test Force | 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N) |
| Indenter | Cone Diamond Rockwell Indenter, ф1.588mm Ball Indenter |
| Loading Method | Manual |
| Hardness Reading | Dial |
| Resolution | 0.5HR |
| Max. Height of Specimen | 170mm |
| Throat | 135mm |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 520×245×700mm, Packing Dimension: 650×370×950mm |
| Weight | Net Weight: 73kg, Gross Weight: 100kg |
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
| ф1.588mmBall Indenter | 1 pc | Middle Plane Test Table | 1 pc |
| Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| Hardness Block 70~85 HR30T | 1 pc | Hardness Block 80~90 HR15N | 1 pc |
| Hardness Block 65~80 HR30N | 1 pc | Weight A, B, C | 3 pcs |
| Anti-dust Cover | 1 pc | Usage Instruction Manual | 1 copy |
