Protruding Indenter

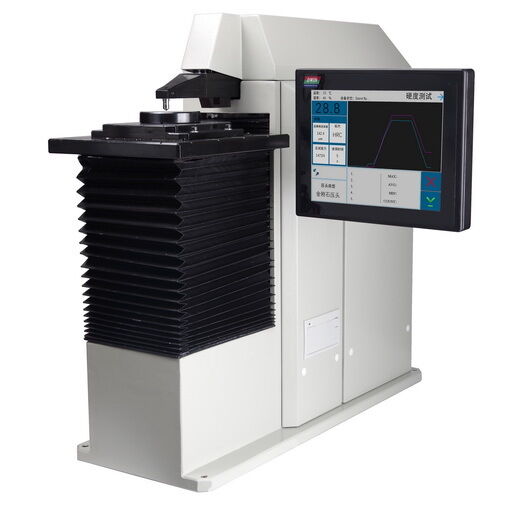

Automatic Regular and Superficial Rockwell Hardness Tester HRS-150XZ
Download Technical Data: iqualitrol ROCKWELL TESTER HRS-150XZ
Brief Introduction:
The iqualitrol fully automatic convex nose Rockwell hardness tester adopts the principle of Rockwell measurement to test the hardness of carbon steel, alloy steel, cast iron, non-ferrous metal and engineering plastics.
The iqualitrol HRS-150XZ adopts advanced closed-loop sensor control technology in the world, and realizes the full automatic control and hardness testing process.
The loading system uses a high precision force sensor and a central controller to form a closed loop to track and control the whole microsecond loading process.
Widely used in measurement, mechanical manufacturing, metallurgy, chemical industry, building materials and other industries of testing, scientific research and production.
Technical Specifications:
| Model | HRS-150XZ | HRS-45XZ | HRS-145XZ |
| Rockwell initial test force | 10kgf | 3kgf | 3kgf, 10kgf |
| 98.07N | 29.4N | 29.4N, 98N | |
| Rockwell total test force | 60kgf, 100kgf, 150kgf | 15kgf, 30kgf, 45kgf | 15kgf, 30kgf, 45kgf, 60kgf, 100kgf, 150kgf |
| 588.4N, 980.7N, 1471N | 147.1N, 294.2N, 441.3N |
147.1N, 294.2N, 441.3N 588.4N, 980.7N, 1471N |
|
| Rockwell scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Specification of indenter | Rockwell diamond indenter, Φ1.5875mm Steel ball indenter | ||
| Executive standard | ISO 6508, GB/T230, JJG112, ASTM E18 | ||
| Scales conversion | HR, HB, HV, HK; according to ASTM E 140 | ||
| Hardness indication | LCD | ||
| Date output | Built-in printer, RS-232 interface | ||
| Vertical Space | 140mm, Maximum height of specimen | ||
| Depth Throat | 150mm, Distance from the center of indenter to the body | ||
| Power supply | AC90-240V 50-60Hz | ||
| Shape size | 700*260*700mm | ||
| Machine net weight | About 160kg | ||
Main Features:
1, The high-speed precision step control system can effectively avoid the overload of force measurement and greatly improve the loading speed.
2, One-button operation, Z-axis automatically rising, loading, dwell and unloading force values are integrated to achieve full automatic operation.
3, Setting up upper and lower limits and alarming for overshoot;
4, Special designed indenter extends horizontally to measure parts which can not be measured by ordinary hardness testers such as annular and tubular. Standard configuration can test the minimum inner diameter of 40mm, custom indenter can test the minimum inner diameter of 25mm.
5, Initial test force of automatic lifting platform and automatic load can ensure the stable generation of force measurement.
6, The curve display of the testing process can visually display the material characteristics and facilitate observation and learning.
