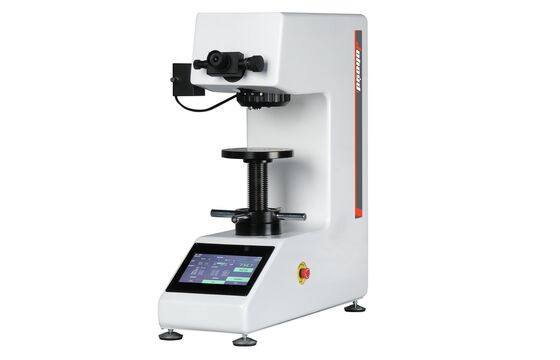

ISO 6507 Automatic Turret Vickers Hardness Testing Machine with Force Accuracy ±0.2%


ISO 6507 Automatic Turret Vickers Hardness Testing Machine
with Force Accuracy ±0.2%

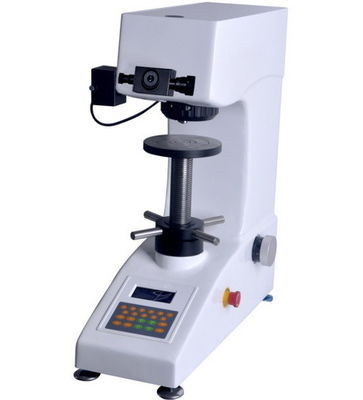

Model: HV-10Z

Technical Data Download: iqualitrol Auto Turret Vickers Hardness Tester HV-10Z

Brief Introduction:
iqualitrol automatic turret-type Vickers hardness tester is a high-tech product of electromechanical and electromechanical integration.

Equipment for Vickers hardness testing usually consists of a testing machine which supports the specimen and permits the indenter and the specimen to be brought into contact gradually and smoothly under a predetermined force, which is applied for a fixed period of time.

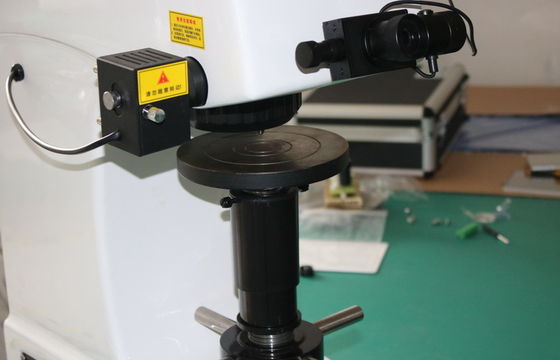

The design of the machine should be such that no rocking or lateral movement of the indenter or specimen is permitted while the force is being applied or removed. A measuring microscope is usually mounted on the machine in such a manner that the impression in the specimen may be readily located in the optical field.

The hardness tester is novel in design, has good reliability, operability, and repeatability and is an ideal product for testing Vickers hardness. The machine uses computer software programming, optical measurement system.

Through the soft key input, the measurement of Vickers and Knoop hardness can be selected, the intensity of the measuring light source can be adjusted, the time of charge can be selected, the test method and test force can be displayed on the LCD display, and the indentation pair can be measured through the panel input. The length of the corner line and the screen directly read the hardness value, making it simple to check the table. Easy to use, high measurement accuracy.

Technical Specifications:


Standard configuration:

Remarks: Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.

Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.

2. On the industrial display screen, the hardness value can be visually displayed, the hardness can be converted, the test method, the test force, the time of the charge and the number of measurements, and the test process can be intuitively understood.

3, Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;

4. Our company has its own R&D, production and processing capabilities. Our machines provide parts replacement and maintenance upgrade services for life.

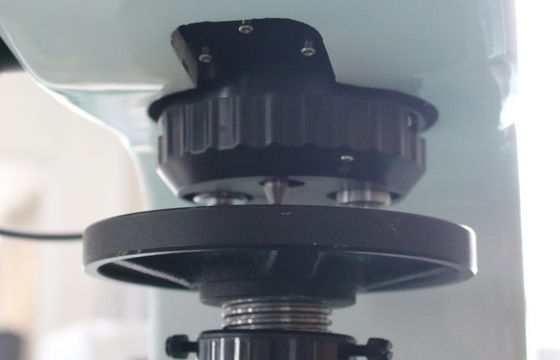

5, HV-10Z model can be achieved: observation - test - measurement of the position switch by the automatic turret

Main application scope:

1, ferrous metal, non-ferrous metal, IC sheet, surface coating, laminated metal;

2, glass, ceramics, agate, precious stones, thin plastics, etc.;

3. Hardness test of depth and gradient of carbonized layer and quenching layer;

4. Precision Vickers measurement for parallel planes and small and ultra-thin parts.

5. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures;
6. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating;
7, glass, wafers, ceramic materials,carbonization;
