Product Details:
Payment & Shipping Terms:
|
| Model: | DTQ-5 | Speed: | 10-600rpm |
|---|---|---|---|
| Application: | Hard And Brittle Materials | Cutting Wheel: | 100 * 0.5 *20mm |
| Power: | AC220V/50Hz/1Ph, 80W | Operation: | Realize Without Being Watched |
| Highlight: | 220V Low Speed Precision Cutting Machine,50Hz Low Speed Precision Cutting Machine |
||

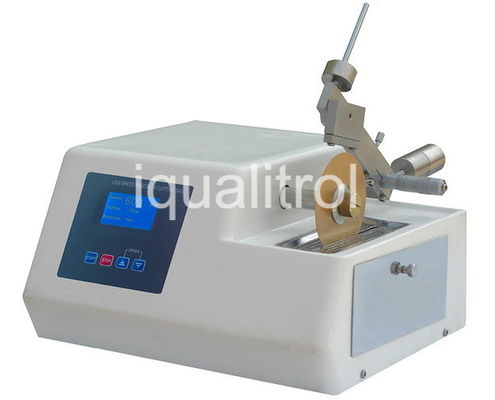

Low Speed Specimen Metallographic Cutting Machine for
Non-Metal and Electronic Parts
Technical Data Download: iqualitrol Precision Metallographic Cutter DTQ-5
Brief Introduction:
iqualitrol DTQ-5 low speed specimen cutting machine is suitable for the precise cutting of various hard materials, especially for precise cutting of all kinds of small metal, non-metal pieces and various electronic components.
iqualitrol DTQ-5 equipped with diamond saw blade and other resin blade so as to meet the demands of cutting of various specimens. Many specimen clamping grippers are equipped with this machine and it can realize the positioning cutting at best angle for the work pieces.
iqualitrol DTQ-5 also realize work piece processing without being watched. The main shaft features high running speed and the horizontal feeding position of the work piece being processed can be adjusted precisely. It is the ideal metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Technical Specifications:
| Model | DTQ-5 |
| Movable stand travel | 25mm |
| Positioning accuracy | 0.01mm |
|
Rotating speed of main shaft |
60-600 rpm adjustable |
| Diameter of blade | 100mm - 150mm |
| Power supply | 220V, 50Hz |
| Dimensions | 35x35x20cm |
| Weight |
19Kg |
