SQ-100 Water Cooling Manual Metallographic Abrasive Cutter with Max Section 100mm

Name: SQ-100 Water Cooling Manual Metallographic Abrasive Cutter with Max Section 100mm
Brand: iqualitrol
SKU: SQ-100
Rating: 5 (143 reviews)

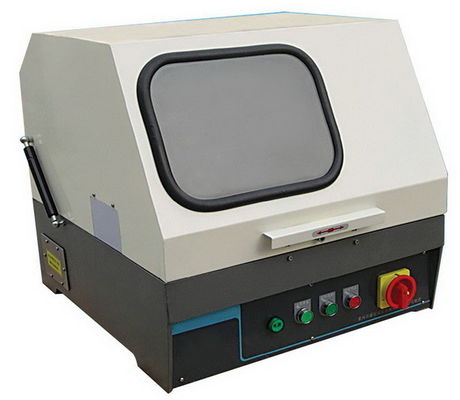

Large Image : SQ-100 Water Cooling Manual Metallographic Abrasive Cutter with Max Section 100mm

Product Details:

Brand Name:	iqualitrol
Model Number:	SQ-100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	T/T
Supply Ability:	10 Sets per Month

Contact Now

Detailed Product Description

Section Dia.:	Max 100mm	Speed:	2800rpm
Disc Dia.:	300mm X2mm X32mm	Cool Type:	Water Tank, Internal Recycle
Application:	Mainly For Metallic Materials	Power:	AC380V/50HZ/3Ph, 2.2Kw
Highlight:	precision cutting machine , abrasive cutting machine

SQ-100 Water Cooling Manual Metallographic Sample Cutting Machine with Max Section 100mm

Technical Data Download: iqualitrol Cutting Machine SQ-100

Brief Introduction:

The iqualitrol SQ-100/SQ-80 cutting machine is suitable for cutting all kinds of specimens including metallic materials and nonmetallic materials so as to observe metallographic structure and lithofacies structure.

The cooling circuit tank could help to prevent burning the sample tissue due to overheating during the cut-off process.

The cutting machine is quite convenient, safety and reliable. It is one of the specimen-making equipment necessary for metallographic test for factory, researching unit and college and university laboratory .

Technical Specifications:

Model	SQ-80	SQ-100
Input voltage	AC380V/50HZ/3Ph (Optional AC220V/60Hz/3Ph)
Wheel speed	2800rpm
Cutting wheel size	Φ250mm x2mm x32mm	Φ300mm x2mm x32mm
MAX cutting diameter	Φ80mm	Φ100mm
Motor	Y2-1001-2-2, 2.2KW	Y2-1001-2-2, 3KW
Dimension	690 x 740 x 670mm	690 x 790 x 800mm
