| Section: | Max 80mm (100mm For Q-100B) | Speed: | Rotation Speed 2100rpm |
|---|---|---|---|
| Disc Dia.: | Φ350 X2.5 X32mm | Power: | 2.5KW, AC380V/50HZ/3Ph |
| Feed Speed: | 1-10mm/min | Table: | Dimension 310mm X280mm |
| Highlight: | precision cutting machine,specimen cutting machine |
||

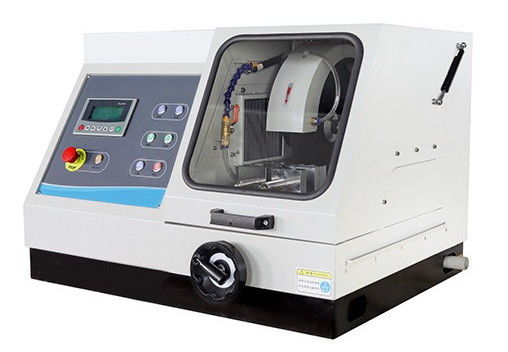

Q-80Z / Q-100B Recycle Water Cooling Automatic
Metallographic Cutting Machine Motor Speed 2100rpm
Technical Data Download:
iqualitrol Automatic Metallographic Cutting Machine Q-100B/Q-80Z
Brief Introduction:
Model iqualitrol Q-100B, Q-80Z Auto cutting machine is composed of main machine, electric control box, cutting room, motor, cooling system, cutting grinding wheel and other parts.
Q-80Z Cutting Machine can cut round workpiece with the diameter of 80mm or less, you can also cut rectangular specimens with Height under 80mm, Depth under 200mm.
Q-80Z cools the sample through a self-circulating cooling system to prevent burning the structure of the specimen from overheating during the cutting process.
The machine can also cut different samples by setting the cutting speed, thus improving the quality of the cutting sample.
The machine is divided into manual cutting and automatic cutting. Large volume of the cutting room, more convenient for cutting use, it is one of the necessary sample preparation equipment of the tertiary institutions, factories and enterprises.
The cutting machine can cut not only diameter of 100mm cylinder work-piece, but also can cut rectangular specimens within the cutting of height 70mm, depth 100mm.
Cooling system to prevent overheating and burning during the cutting process. Cutting speed can be preset in accordance with the different specimen so as to improve the quality of cutting samples.
Support manual cutting and automatic cutting. It is more convenient for users because of large cutting chamber.
Technical Specifications:
| Model | Q-80Z | Q-100B |
| Input voltage | AC380V/50HZ/3Ph; AC220V/60HZ/3Ph | |
| Wheel speed | 2100rpm | 2100rpm |
| Cutting wheel size | Φ350 x2.5 x32mm | Φ350 x2.5 x32mm |
| MAX cutting diameter | Φ80mm | Φ100mm |
| Max moving travel | 125mm | 125mm |
| Max working table travel | 275mm | 275mm |
| Motor: | 2.5KW | 3.3KW |
| Feed speed | 1-10mm/min | 1-10mm/min |
| Working table size | 310mm x280mm | 310mm x280mm |
| Dimension | 835 x850 x620mm | 900 x850 x620mm |
| Machine net weight | 180kg | 200kg |
| Tank net weight | 25kg | 25kg |
