|Model:||LQ-100Z||Section:||Max Dia. 110mm|
|Cooling:||Water Spray Cooling||Y Direction:||Travel 200mm|
|Z Direction:||Travel 150mm||Power:||4Kw|
Vertical Metallographic Cutting Machine,
Large Capacity Metallographic Cutting Machine

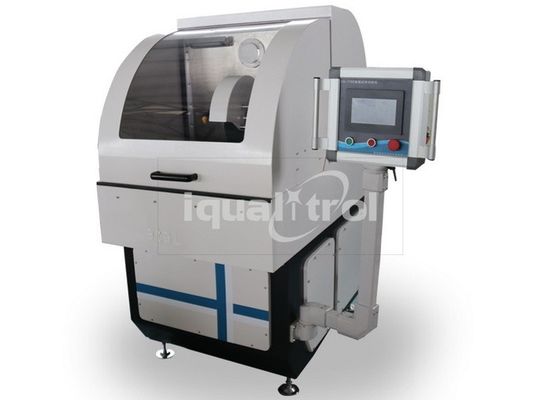

Vertical Large Capacity Automatic Metallographic Cutting Machine with Recycling Water Cooling
iqualitrol LQ-110Z automatic metallographic cutting machine is a vertical large-scale metallographic cutting machine designed and manufactured according to the principle of safety and environmental protection.
It is suitable for cutting samples of various metal and non-metal materials to observe metallographic materials. Lithofacies organization. The machine is stable, low noise, easy to operate and safe to use. It is one of the necessary equipment for laboratory samples of solid materials.
iqualitrol LQ-110Z is composed of cutting system, cooling system, lighting system, cleaning system and so on. The upper part of the device is completely covered by an openable protective cover. The front of the protective cover is an oversized viewing window.
The high-intensity lighting system allows the operator to keep abreast of the cutting process. The grooved cast iron table with clamps is suitable for cutting a variety of profiled workpieces. The super-cooling system keeps the workpiece from burning when it is cut. The cooling water tank is placed inside the base of the equipment. The water tank is equipped with a magnetic separator to collect debris. The door safety switch and the explosion-proof guard ensure the safety of the operator.
Cutting mode: chopping, flat push cutting
Feed axis feed mode: cut feed, continuous feed, cut feed
Maximum cutting diameter: Φ110mm
Y axis maximum cutting stroke: 200.000mm
Z axis maximum cutting stroke: 150.000mm
Y-axis cutting speed setting range: 1.000mm/s-0.001mm/s
Z-axis cutting speed setting range: 1.000mm/s to 0.001mm/s
Y-axis tool setting speed range: 5.000mm/s to 0.001mm/s
Z-axis tool setting speed range: 5.000mm/s to 0.001mm/s
Grinding wheel specifications: 350 × 2.5 × 32mm
Cooling method: water spray
Overall size: 1060 × 1450 × 1650 (length × width × height)
Power: 380V (three phase) 50HZ
Motor power: 4KW
Contact Person: Mr. Raymond Chung
Cutting Disc: can be used with Ф300mm and Ф350mm cutting blades
Motor: high-power motor (5.5Kw) to make the cutting more powerful and labor-saving
Application: cutting of the specimens of various shapes, sizes, and complex materials
push-up safety door: putting samples into the cutting chamber easy and fast
