Detailed Product Description
Indenter Extension Bar: 100mm Indenter Protector: Diameter 11mm, Height 14mm
Indenter Device Travel: 420mm/620mm (optional) Diameter: Minimal Diameter For Specimens 4mm
Test Space: Throat 220mm, Max Height 420mm, (Optional 620mm) Data Export: RS232, Used To Export Data Or Upload To Computer

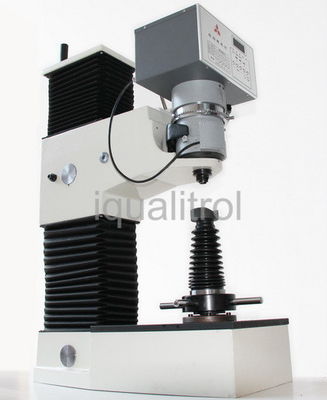

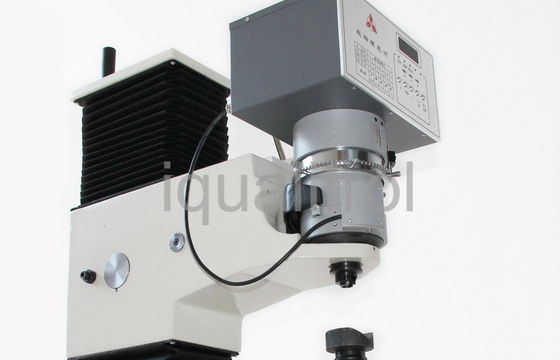

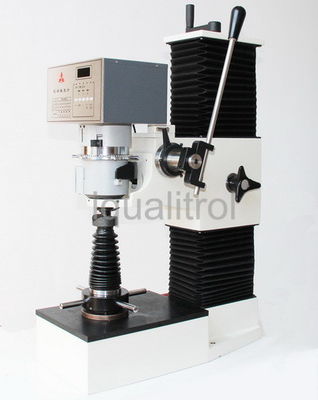

Quick Operation On-site Direct Rockwell Hardness Tester for Big and Irregular Components



Brief Introduction:


iqualitrol iRock-KR150 can directly test the samples with oxide skin and oil slick, long rod sample, no need horizontally support, huge test space for finished products and difficult environments.

Not influenced by bending nor deflections, simple, quick and precise

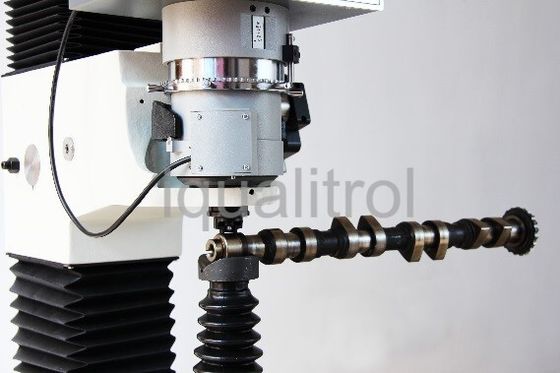

The clamping shield permits the measure of big and irregular pieces, direct Rockwell hardness reading.



Technical Specification:



Hardness Type Rockwell

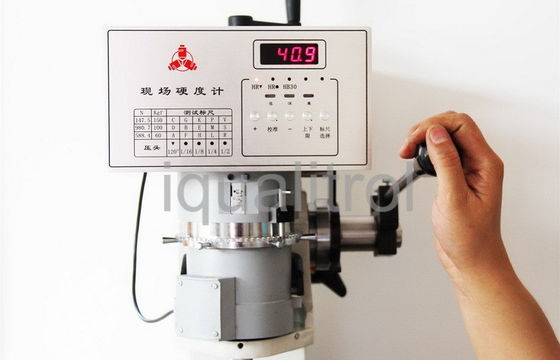

Reading Digital Display
Resolution 0.1HR
Pre-Load 10kg (98N)
Total Load 60kgf (588N), 100kgf(980N), 150kgf (1471N)
Rockwell Scales HRA-HRB-HRC-HRD-HRF-HRG
Hardness Range 10-70HRC
Minimal Diameter for specimens 4mm (rod shape needs anvil supports)
Permitted Error Conform ISO6508-2
Repeatability Conform ISO6508-2
Indenter Protector Diameter 11mm, Height 14mm
Indenter extension bar 100mm (optional)
Indenter device travel 420mm/620mm (optional)
Loading Method Manual (Load by lever)
Dwell Time Randomly
Test Space Throat 220mm, Max height 420mm, (Optional 620mm)
Data Export RS232, used to export data or upload to computer
Power supply 1ph/AC100-240V/50/60Hz
Power Consumption 18W
Working environment Temp 0-50℃, humidity 10%-90%RH
Dimension 240mm*560mm* 875 mm
Base for sample 240mm*335mm
Weight Net 117kg, Gross 126kg



Quick Operation On-site Direct Rockwell Hardness Tester for Big and Irregular Components

Standard Delivery:



Rockwell Diamond Indenter, 1pc Rockwell Ball Indenter 1/16", 1pc
Brinell Indenter 2.5mm, 1pc Rockwell Test Blocks 3pcs
Brinell Test Block HBW2.5/187.5, 1pc Spare fuse
Test Anvil R, 1pc Accessory Box, 1pc
Anvil Diameter 58mm, 1pc Anvil Diameter 150mm, 1pc



Quick Operation On-site Direct Rockwell Hardness Tester for Big and Irregular Components
