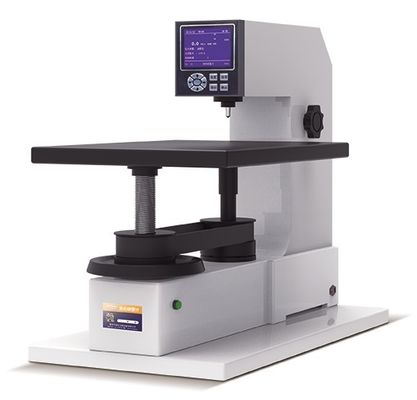

Two-axis linkage Structure Digital Rockwell Hardness Testing Machine for larger workpieces

Two-axis linkage Structure Digital Rockwell Hardness Testing Machine for larger workpieces
Two-axis linkage Structure Digital Rockwell Hardness Testing Machine for larger workpieces

Large Image :  Two-axis linkage Structure Digital Rockwell Hardness Testing Machine for larger workpieces

Product Details:
Brand Name: iqualitrol
Model Number: HRSJ-150HY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Workbench: Dimension 400*600mm (customizable) Lifting Structure: Two-axis Linkage Synchronous
Data Output: Output Data Through RS232 Height: Max Specimen Height 90mm
Measuring Device: Displacement Sensor Value Correction: Within ±3HR
Highlight:

Rockwell Hardness Testing Machine 50Hz

,

Rockwell Hardness Testing Machine AC220V

,

Rockwell Metal Hardness Tester



Two-axis linkage Structure Digital Rockwell Hardness Testing
Machine for larger workpieces



Model: HRSJ-150HY



Technical Data Download: iqualitrol Rockwell Hardness Tester HRSJ-150HY



Summary:

The new developed iqualitrol HRSJ-150HY was upgraded on the basis of ordinary digital display Rockwell hardness tester, re-customized the transmission structure and workbench of the whole machine to make it more widely used. The extended workbench can be used to measure relatively large workpieces.



Technical Specifications:

Model HRSJ-150HY
Hardness Range 20-95HRA, 10-100HRBW, 20-70HRC;
Loading Force 588, 980, 1471N (60, 100, 150kgf)
Max Specimen Height 90mm
Throat 135mm
Hardness Resolution 0.1HR
Power Supply AC220V/50Hz
Dimension 500*400*700mm (customizable)
Weight 130kg


Key Features:

1. The measuring device adopts a grating displacement sensor, and the test result, hardness scale, test force, indenter type, dwell time, conversion unit, etc. all can be displayed and set on LCD screen;



2. The fuselage is made of cast iron at one time, and with the car paint treatment process, the shape is round and beautiful;



3. Convenient control system, which can automatically convert the unit of the full hardness scales;

4. The built-in test software can correct the hardness result within ±3HR;



5. The loading, dwell and unloading of the test force is controlled by the motor, which eliminates the human error compare with the manual Rockwell hardness tester;



6. Configure a wireless Bluetooth printer, and output data through the RS232 port;

7. Large workbench 400*600mm (customizable), which can test large workpieces smoothly;



8. Two-axis linkage synchronous lifting structure, stable lifting;

9. Test accuracy complies with GB/T230.2, ISO 6508-2 and American ASTM E18 standards.



Application Range:
1. Widely used to determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;

2. Test the Rockwell hardness of heat-treated materials such as quenching and tempering;



3. Cemented carbide, carburizing steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, mild steel, quenched and tempered steel, annealed steel, bearings and other materials;



Packing List:

Big Test Table 1pc Diamond Indenter 1pc
Test Blocks 5pcs φ1.588 Ball Indenter 1pc
Printer 1pcs φ1.588 Steel Ball 1pc
