Workbench: | 730*500mm (customizable) | Lifting Structure: | Two-axis Linkage Synchronous |
---|---|---|---|
Loading Control: | Automatical Loading Control | Height: | Max Specimen Height 320mm |
Weight: | Max Specimen Weight 200kg | Depth: | 160mm |
Highlight: | Rockwell Hardness Test Unit,Rockwell Hardness Unit 320mm |

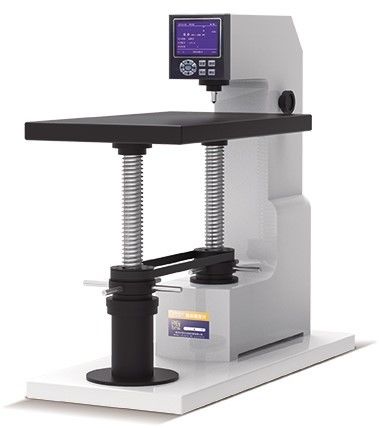

Enlarged Test Table Digital Rockwell Hardness Testing Machine with Max Height 320mm
Brief Introduction:
The new developed iqualitrol HRSJ-150BHY was upgraded on the basis of ordinary digital display Rockwell hardness tester, re-customized the transmission structure and workbench of the whole machine to make it more widely used. The extended workbench can be used to measure relatively large workpieces.
Technical Specifications:
Model | HRSJ-150BHY |
Test Range | 20-95HRA, 10-100HRBW, 20-70HRC; |
Loading Force | 588, 980, 1471N (60, 100, 150kgf) |
Max Specimen Height | 320mm |
Throat | 160mm |
Hardness Resolution | 0.1HR |
Power Supply | AC 220V,50Hz |
Dimension | 1100*400*1100mm (workbench 730*500mm, customizable) |
Weight | 320kg |
Load Specimen Weight | 200kg |
Key Features:
1. The measuring device adopts a grating displacement sensor, and the test result, hardness scale, test force, indenter type, dwell time, conversion unit, etc. all can be displayed and set on LCD screen;
2. The fuselage is made of cast iron at one time, and with the car paint treatment process, the shape is round and beautiful;
3. Convenient control system, which can automatically convert the unit of the full hardness scales;
4. The built-in test software can correct the hardness result within ±3HR;
5. The loading, dwell and unloading of the test force is controlled by the motor, which eliminates the human error compare with the manual Rockwell hardness tester;
6. Configure a wireless Bluetooth printer, and output data through the RS232 port;
7. Large workbench 730*500mm (customizable), which can test large workpieces smoothly;
8. Two-axis linkage synchronous lifting structure, stable lifting;
9. Test accuracy complies with GB/T230.2, ISO 6508-2 and American ASTM E18 standards.
Application Range:
1. Widely used to determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;
2. Test the Rockwell hardness of heat-treated materials such as quenching and tempering;
3. Cemented carbide, carburizing steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, mild steel, quenched and tempered steel, annealed steel, bearings and other materials;
Packing List:
Big Test Table | 1pc | Diamond Indenter | 1pc |
Test Blocks | 5pcs | φ1.588 Ball Indenter | 1pc |
Printer | 1pcs | φ1.588 Steel Ball | 1pc |
