Max Force 10Kgf Fully

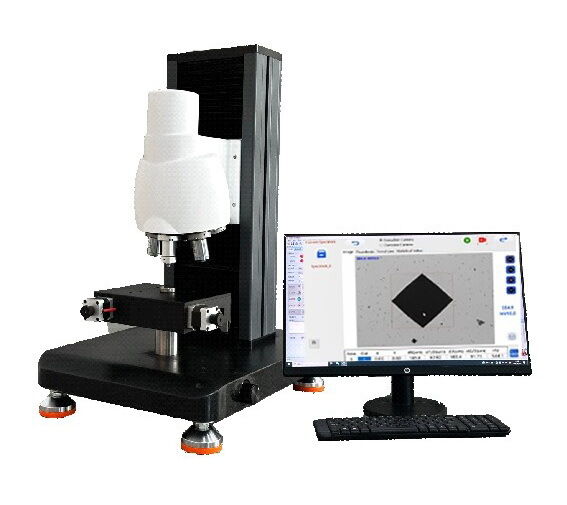

Automatic Intelligent Vickers Hardness Tester iqualitrol SCV-5XYZ
Brief Introduction:
The iqualitrol SCV-5XYZ Fully Automatic Intelligent Vickers Hardness Tester is a precision Vickers hardness testing instrument that replaces the imported upward‑downward moving measuring head structure. It is designed specifically to meet diverse material testing requirements.
Equipped with an electronic loading closed‑loop control system, it offers a wide test force range from 10gf to10kgf (or optional 10gf to 50kgf), fully covering the common test forces used in industry.
It can flexibly handle hardness testing challenges for various materials. With its outstanding performance and flexible configuration, provides all‑round support and assurance for your material testing.
Technical Specifications:
| Hardness Testing Range | 5–3000HV, covering the hardness testing range of various materials |
| Test Forces | 0.01kgf, 0.25kgf, 0.05kgf, 0.1kgf, 0.2kgf, 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf (0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N) |
| Standards Compliance | Conforms to GB/T 4340, ISO 6507, ASTM E384 and other international and domestic standards |
| X‑Y Automatic Stage | 50mm × 50mm. Positioning repeatability: <2μm; XYZ positioning resolution: up to 2μm, ensuring precise positioning during testing |
| Resolution | 0.1μm, meeting high‑precision testing requirements |
| Loading Control | Automatic loading, dwell, and unloading, simple and efficient operation |
| Turret | Automatic switching supported, improving testing efficiency and reducing human error |
| Lens Magnifications | High‑definition objectives: 10× and 50× (optional 10× & 20×) for detailed observation |
| Stations | Standard 3 stations (supports up to 6 stations to meet various testing needs) |
| Hardness Conversion | Supports conversion among HR, HB, HV and other hardness units for convenient comparison and analysis |
| Dwell Time | Adjustable from 1–99 s to meet requirements under different testing conditions |
| Vertical Space | 170mm (customizable), suitable for specimens of different sizes |
| Depth Throat | 135mm (customizable), ensuring stable and reliable testing |
| Power Supply | AC220V/50Hz, weight 80Kg |
Main Features:
1, Lifting measuring head structure with fixed worktable for enhanced stability during testing.
2, Z‑axis electric focusing: Quickly and accurately locates the focal plane, improves testing efficiency, enhances automation, and reduces operational difficulty.

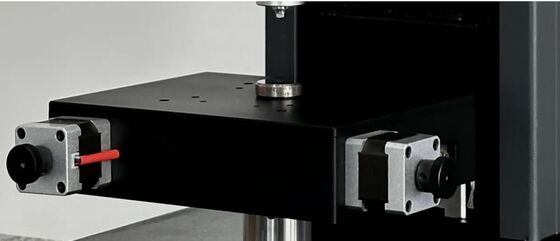

3, Equipped with an XY automatic worktable to realize fully automatic measurement and a series of testing applications, including sample profile scanning, automatic indentation, continuous indentation, automatic focusing, and multi‑point continuous measurement.
4, Advanced optics and safety technology: A unique optical system ensures clear imaging, perfectly integrated with anti‑collision safety technology to guarantee operational safety.
5, Digital zoom and powerful testing system: Digital zoom provides a wide magnification range. Combined with long‑working‑distance objectives and a high‑precision automatic stage, it forms a robust testing system that ensures accurate results.

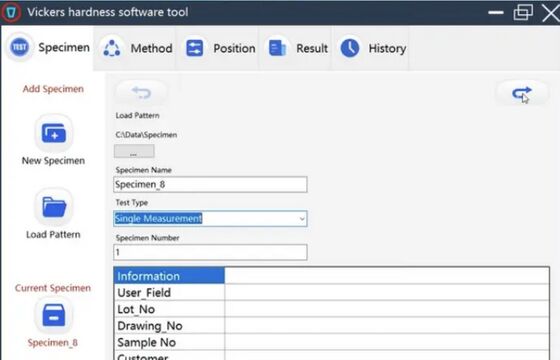

6, Highly integrated intelligence: All hardware and software are elaborately designed, assembled, and integrated as a whole, improving the intelligence of the hardness tester while ensuring stable and reliable test results.
7, Customizable testing space: Testing space and worktable can be customized according to different specimen sizes, flexibly adapting to various testing scenarios.

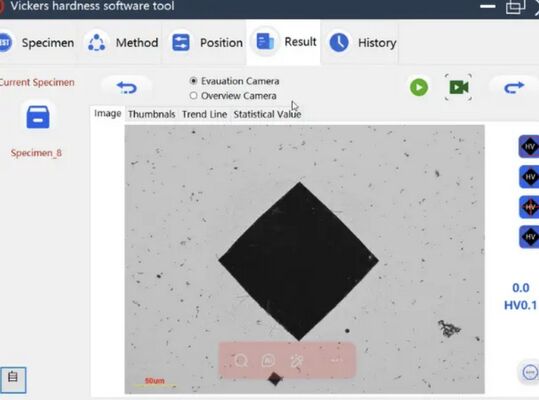

8, Image recognition system: Adopts a unique algorithm with strong recognition capability and high precision, ensuring accurate measurements and further improving testing efficiency and accuracy.
Application Range:
Widely used for hardness testing of various materials including steel, non-ferrous metals, IC wafers, thin plastics, metal foils, plating layers, coatings, surface-hardened layers, laminated metals, hardened depth of heat-treated carburized layers, cemented carbides, ceramics, etc.
It is also suitable for hardness testing of thin sheets, electroplating, welded joints or deposited layers, providing strong support for materials science research and industrial quality control.
