| HV-5AEHY: | Force 5Kgf, Sensor Loading Auto Turret Analogue Eyepiece | HV-10AEHY: | Force 10Kgf, Sensor Loading Auto Turret Analogue Eyepiece |
|---|---|---|---|
| HV-30AEHY: | Force 30Kgf, Sensor Loading Auto Turret Analogue Eyepiece | HV-50AEHY: | Force 50Kgf, Sensor Loading Auto Turret Analogue Eyepiece |
| Turret: | Automatic Turret Adopts High-speed ARM Processor, Intuitive Display | Fuselage: | High-quality Cast Iron For One-time Casting |

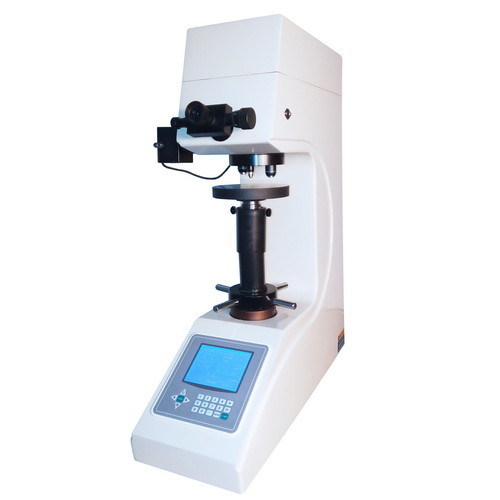

Sensor Loading Auto Turret Mechanical Eyepiece Vickers Hardness Tester with LCD
Model: HV-5AEHY
Technical Data Download:iqualitrol Auto Turret Vickers Hardness Tester HV-5AEHY
product description:
The new iqualitrol HV-5/10/30/50AEHY automatic turret Vickers hardness tester adopts high-speed ARM processor, intuitive display, friendly human-computer interaction, and easy operation;
The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
The test force is loaded and unloaded electrically, and the closed-loop feedback is performed by a pressure sensor with a precision of 5‰, and the high-speed ARM processor controls and can automatically correct the test force;
Automatic turret function is configured;
Convenient operating system, which can automatically convert the unit of the full hardness scale;
The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;
Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;
Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;
The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.
Main Parameters:
| Model | HV-5/10/30/50AEHY | ||||
| Range of Measurement | 5-5000HV | ||||
| Test Force | Loading Mode | SENSOR Loading | |||
| HV-5AEHY |
0.3,0.5,1.0, 2.0,3.0,5.0kgf |
||||
| HV-10AEHY |
0.3,0.5,1.0, 3.0,5.0,10kgf； |
||||
| HV-30AEHY |
0.3,0.5,1.0, 5.0,10.0,30.0kgf |
||||
| HV-50AEHY |
1.0,5.0,10.0, 20.0,30.0,50.0kgf. |
||||
| Data Entry Mode | MANUAL | ||||
| Turret Mode | AUTO TURRET | ||||
| Maximum Height of Specimen | 200mm | ||||
| Distance between Indenter Center and Wall | 130mm | ||||
| Objective | HV-5/10/30AEHY serial |
10×,40×
|
HV-50AEHY | 10×,20× | |
| Magnifications | 100×,400× | 100×,200× | |||
| Eyepiece Measure Resolution | 0.025μm | 0.1μm | |||
| Hardness Resolution | 0.1HV | ||||
| Power Supply | AC 220V,50Hz | ||||
| Outline Dimension | 620*330*650mm | ||||
| Weight | 75kg | ||||
Accessories Box:
| Micrometer Eyepiece | One PC | The Small Anvil | One PC |
| The Big Anvil | One PC | Diamond Vickers Indenter | One PC |
| V-type Anvil | One PC | Standard Vickers Hardness Block | Two Blocks |
