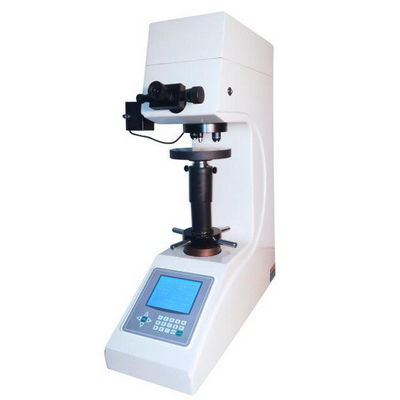

Sensor Loading Manual Turret Mechanical Eyepiece Vickers Hardness Tester with LCD

Sensor Loading Manual Turret Mechanical Eyepiece Vickers Hardness Tester with LCD
Sensor Loading Manual Turret Mechanical Eyepiece Vickers Hardness Tester with LCD

Large Image :  Sensor Loading Manual Turret Mechanical Eyepiece Vickers Hardness Tester with LCD

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HV-5EHY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
HV-5EHY: Force 5Kgf, Sensor Loading Auto Turret Analogue Eyepiece HV-10EHY: Force 10Kgf, Sensor Loading Auto Turret Analogue Eyepiece
HV-30EHY: Force 30Kgf, Sensor Loading Auto Turret Analogue Eyepiece HV-50EHY: Force 50Kgf, Sensor Loading Auto Turret Analogue Eyepiece
Turret: Manual Turret Adopts High-speed ARM Processor, Intuitive Display Fuselage: High-quality Cast Iron For One-time Casting


Sensor Loading Manual Turret Mechanical Eyepiece Vickers Hardness Tester with LCD

Model: HV-5EHY

Technical Data Download:iqualitrol Vickers Hardness Tester HV-5EHY

product description:

The new iqualitrol HV-5/10/30/50EHY MANUAL turret Vickers hardness tester adopts high-speed ARM processor, intuitive display, friendly human-computer interaction, and easy operation;

The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;

The test force is loaded and unloaded electrically, and the closed-loop feedback is performed by a pressure sensor with a precision of 5‰, and the high-speed ARM processor controls and can automatically correct the test force;

Manual turret function is configured;

Convenient operating system, which can automatically convert the unit of the full hardness scale;
The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;

Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;
Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;

The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.


Main Parameters:

Model HV-5/10/30/50EHY
Range of Measurement 5-5000HV
Test Force Loading Mode SENSOR Loading
HV-5EHY

0.3,0.5,1.0,

2.0,3.0,5.0kgf

HV-10EHY

0.3,0.5,1.0,

3.0,5.0,10kgf;

HV-30EHY

0.3,0.5,1.0,

5.0,10.0,30.0kgf

HV-50EHY

1.0,5.0,10.0,

20.0,30.0,50.0kgf.

Data Entry Mode MANUAL
Turret Mode MANUAL TURRET
Maximum Height of Specimen 200mm
Distance between Indenter Center and Wall 130mm
Objective HV-5/10/30EHY serial



10×,40×



HV-50EHY 10×,20×
Magnifications 100×,400× 100×,200×
Eyepiece Measure Resolution 0.025μm 0.1μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 620*330*650mm
Weight 75kg



Accessories Box:



Micrometer Eyepiece One PC The Small Anvil One PC
The Big Anvil One PC Diamond Vickers Indenter One PC
V-type Anvil One PC Standard Vickers Hardness Block Two Blocks
