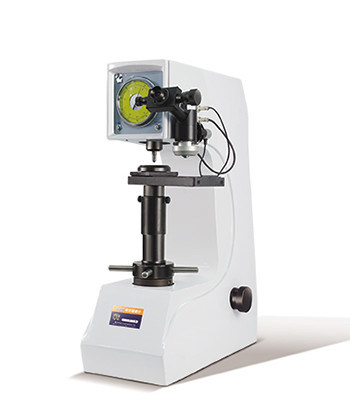

Motorized Loading Brinell Rockwell Vickers Multi Function HardnessTesting Machine

Motorized Loading Brinell Rockwell Vickers Multi Function HardnessTesting Machine
Motorized Loading Brinell Rockwell Vickers Multi Function HardnessTesting Machine

Large Image :  Motorized Loading Brinell Rockwell Vickers Multi Function HardnessTesting Machine

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HBRVD-187.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Machine Structure: Integral Casting By High Quality Cast Iron Loading Control: Motor Control Test Force Loading, Dwell, Unloading
Magnification: 25X, 50X, 100X Throat: 160mm
Brinell Force: 31.25kgf, 62.5kgf, 187.5kgf Vickers Force: 30kgf, 100kgf



Motorized Loading Brinell Rockwell Vickers Multi Function HardnessTesting Machine



Model: HBRVD-187.5



Technical Data Download:iqualitrol Brinell Rockwell Vickers HBRVD-187.5



Product Features:

  • iqualitrol HBRVD-187.5 body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;

  • iqualitrol HBRVD-187.5 has three kinds of test methods: Brinell, Rockwell and Vickers, and multi-level test force, which can meet various hardness test requirements;

  • Rockwell hardness dial read directly, Brinell, Vickers hardness through high-definition optical system measurement;

  • Motor control test force loading, unloading, loading process, greatly reduce the error of human operation;

  • Lever force, no friction spindle, high precision test force;



Main Parameters:

Model HBRVD-187.5
Test Force Rockwell 60,100,150kgf(588,980,1471N)
Brinell 31.25,62.5,187.5kgf(306.5,612.9,1839N)
Vickers 30,100kgf( 294.2,980.7N)

Ruler type



Rockwell HRA,HRB,HRC
Brinell

HBW2.5/31.25 ,HBW2.5/62.5

HBW5/62.5 ,HBW2.5/187.5

Vickers HV30,HV100
Range of Measurement Rockwell 20-95HRA,10-100HRBW,20-70HRC
Brinell 5-650HBW
Vickers 5-3000HV
Total Magnification 25X,50X,100X
Distance between Indenter Center and Wall 160mm
Available Maximum Height of Specimen Rockwell 200mm
Brinell,Vickers 180mm
Outline Dimension 550*290*730mm
Weight 80kg




Accessories Box:



Large Round Anvil One PC Large Round Anvil One PC
V-type Anvil One PC Diamond Cone indenter One PC
φ2.5,φ5 Steel Ball head Each one Diamond Indenter One PC
Standard Rockwell Hardness Block Five Blocks Standard Vickers Hardness Block Two Blocks
Standard Brinell Hardness Block Two Block φ1.588 Steel Ball Indenter One PC
Objective lens: 2.5X, 5X and 10X Each for One
