| Throat Depth: | 130mm | Vertical Space: | Maximum Height Of Specimen 200mm |
|---|---|---|---|
| Hardness: | Resolution 0.1HR | Display: | Digital Display Meter Reads Directly |
| Loading: | Automatic (Loading/Dwell/Unloading) | Test Standard: | ASTM E18 Standard |

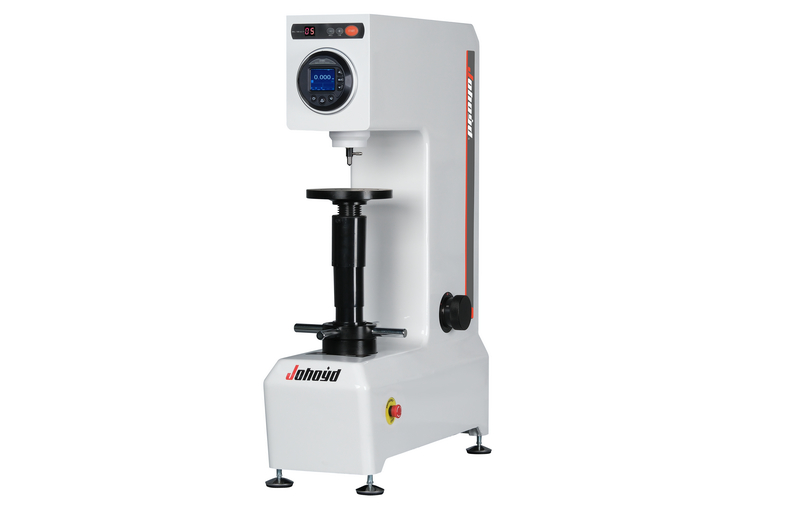

Motorized Loading Digital Display Rockwell Hardness Tester Resolution 0.1HR Depth 130mm
Model: HRD-150S
Technical Data Download:iqualitrol Rockwell Hardness Tester HRD-150S
product description:
iqualitrol HRD-150S digital display meter reads directly, and can be automatically converted into Brinell hardness and Vickers hardness;
Apply precision hydraulic buffer, no buffer fluid leaks, and the loading and unloading is stable, without impact, and the speed is adjustable;
The motor is used to control the loading, dwell and unloading of the test force, eliminating the manual operation and reading errors of the manual Rockwell hardness tester;
iqualitrol HRD-150S digital display Rockwell hardness tester displays the hardness value digitally, and can set the dwell time and hardness conversion;
The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
The accuracy complies with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standards.
Main Parameters:
| Model | HRD-150S |
| Range of Measurement | 20-95HRA,10-100HRBW,20-70HRC |
| Test Force | 588.4,980.7,1471N(60,100,150kgf) |
| Specimen Height | Maximum Height of Specimen 200mm |
| Throat | Distance between Indenter Center and inner Wall 130mm |
| Hardness Resolution | 0.1HR |
| Loading Mode | Motorized |
| Power Supply | AC 220V,50Hz |
| Dimension | 510*290*730mm |
| Weight | 80kg |
