Product Details:
Payment & Shipping Terms:
|
| Value Correction: | Built-in Test Software Can Modify The Measurement Results Of The Machine By 3HR | Test Space: | Test Space Vertical 400mm Depth 165mm |
|---|---|---|---|
| Hardness Conversion: | Convenient Control System Can Automatically Convert Hardness Scales | Structure: | Integral Casting By High Quality Cast Iron, With The Automotive Paint Treatment |
| Heighten Design: | Heightening Type Design, Suitable For Large And Medium-sized Parts | Loading Control: | Loading, Dwell And Unloading Of The Test Force Is Automatic Controlled |

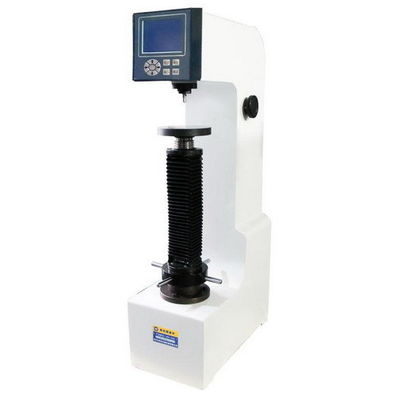

Digital Heightened Rockwell Hardness Tester with Test space vertical 400mm depth 165mm
Model: HRS-150B
Technical Data Download: iqualitrol Rockwell Hardness Tester HRS-150B
Product Features:
● iqualitrol HRS-150B Digital heightened Rockwell hardness tester, the machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful；
● Heightening type design, suitable for large and medium-sized parts；
●For HRS-150B, the loading, dwell and unloading of the test force is automatic controlled by the motor, the manual operation error of manual Rockwell hardness tester is eliminated；
● HRS-150B the measuring device adopt grating displacement sensor, the test results are displayed on the LCD screen, the test scale, test force, indenter type, holding time and the conversion unit can be displayed and set；
● The Built-in test software can modify the measurement results of the machine by 3HR；
● Convenient control system can automatically convert the unit of full hardness scale；
● Equipped with wireless blue-tooth printer, the data can be output through RS232 port；
● Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.
Main Parameters:
| Model | HRS-150B |
| Range of Measurement | 20-95HRA, 10-100HRBW, 20-70HRC |
| Test Force | 588.4,980.7,1471N(60,100,150kgf) |
| Maximum Height of Specimen | 400mm |
| Throat depth | 165mm |
| Hardness Resolution | 0.1HR |
| Power Supply | AC220V/50Hz |
| Dimension | 548*326*1025mm |
| Weight | 140kg |
