Product Details:
Payment & Shipping Terms:
|
| Loading: | Motorized Loading And Unloading | Scales: | 70-100HREW, 50-115HRLW, 50-115HRMW, 50-115HRRW |
|---|---|---|---|
| Test Force: | 60, 100, 150kgf | Vertical Space: | 200mm |
| Throat Depth: | 160mm | Test Standard: | American ASTM E18 Standard |
| High Light: | Dial Gauge Rockwell Hardness Tester,Nonmetal Plastic Rockwell Hardness Tester,150kgf Rockwell Hardness Testing Machine |
||

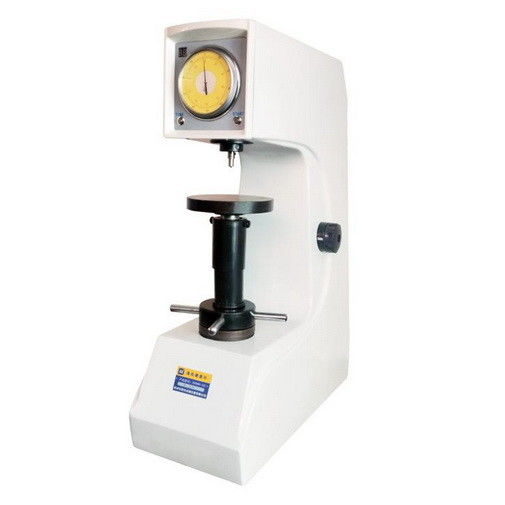

Dial Gauge Motorized Loading Nonmetal Plastic Rockwell Hardness Tester
Model: 2XHRD-150
Product Features:
●iqualitrol 2XHRD-150 motorized loading plastic Rockwell hardness tester used to test hardness of non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals in laboratories and workshops. the loading, dwell and unloading of the test force is controlled by the motor, and the dwell time can be set;
● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;
● Read the hardness values directly from the dial with resolution 0.5HR;
● Adopt the Friction-Free spindle, high test accuracy;
● The loading, dwell and unloading of the test force is controlled by motor;
● Accuracy conform GB/T230.2, ISO6508-2 and American ASTM E18 standards.
Main Parameters:
| Model | 2XHRD-150 |
| Range of Measurement | 70-100HREW, 50-115HRLW, 50-115HRMW, 50-115HRRW |
| Test Force | 588.4,980.7,1471N(60,100,150kgf) |
| Maximum Height of Specimen | 200mm |
| Throat depth | 160mm |
| Hardness Resolution | 0.5HR |
| Power Supply | AC220V/50Hz |
| Dimension | 510*290*730mm |
| Weight | 75kg |
