| Model: | 200HRD-150 | Test Space: | Height 210mm * Depth 165mm |
|---|---|---|---|
| Structure Design: | Optimized Mechanical Structure, Diamond-shaped Appearance Design | Hardness Reading: | Direct Dial Reading, HRA, HRBW, HRC Scales |

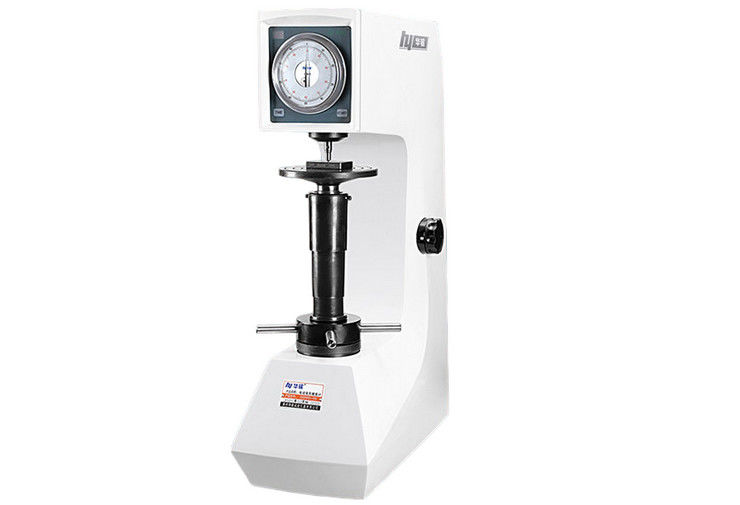

Dial Gauge Motorized Loading Rockwell Hardness Tester iqualitrol 200HRD-150
Main Features:
● Optimized mechanical structure, diamond-shaped appearance design,
● Strong structure, good rigidity, reliability, durability, high test efficiency;
● Automated test process, no human error;
● Direct dial reading, HRA, HRBW, HRC scales;
● Other Rockwell scales can be selected;
● Accuracy meets GB/T230.2, ISO 6508-2 and US ASTM E18.
Technical Specification:
| Model | 200HRD-150 |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Rockwell Ranges | 20-95HRA,10-100HRBW,10-70HRC, |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Resolution | 0.5HR |
| Dwell Time | 0~99s |
| Vertical Space | 210mm |
| Throat | 165mm |
| Power Supply | AC220V/50Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 520x230x725mm, Packing Dimension: 770×380×970mm |
| Weight | Net Weight: 100kg, Gross Weight: 120kg |
