Product Details:
Payment & Shipping Terms:
|
| Initial Force: | 10kgf(98.07N) Allowable Error ±2.0% | Rockwell Scales: | HRE, HRM, HRL, HRR, HRF, HRG, HRH, HRK |
|---|---|---|---|
| Resolution: | 0.1HR | Dwell Time: | 1-60 Seconds |
| Height: | Max Height Specimen 190mm | Throat Depth: | 165mm |
| High Light: | 165mm Rockwell Hardness Tester,HRM Rockwell Hardness Tester,10kgf Rockwell Hardness Testing Machine |
||

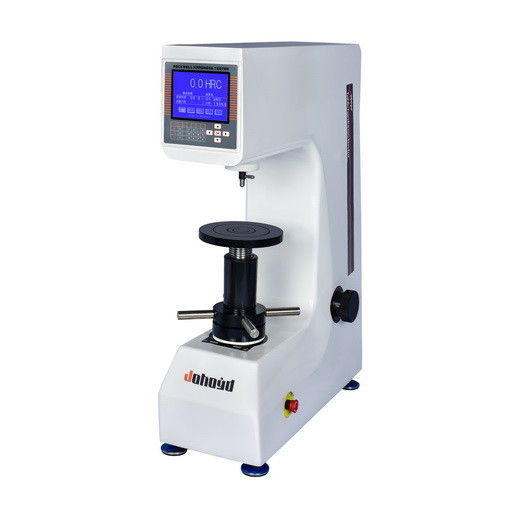

Throat Depth 165mm Plastic Rockwell Hardness Tester XHRS-150 with Digital Display
Model: XHRS-150
Product description:
Iqualitrol XHRS-150 digital display plastic Rockwell hardness tester adopts grating sensor and computer control, and the hardness indication value is directly displayed on the screen as a mechanical and electrical integration hardness testing instrument.
Built-in printer to read the relevant test results. Automated operation eliminates human error and reading errors.
Main functions and features:
1. Display the hardness value through the LCD large screen;
2. The shell is formed by a special sand-casting process. The structure is stable and not deformed, and it can work under harsh environment. The car paint has high grade and strong scratch resistance. It is still bright and new for many years.
Main use and the scope of application:
Cast and forged parts · Sample testing and acceptance testing
Planar and cylindrical workpieces ·Steel, non-ferrous metals
Automotive and aerospace industry · Carbide, ceramics, stainless steel, laboratory and workshop non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals.
Main technical parameters:
| Model | iqualitrol XHRS-150 |
| Initial test force (N) | 10kgf(98.07N) allowable error ±2.0% |
| Total test force (N) | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Rockwell scales | HRE,HRM,HRL,HRR,HRF,HRG,HRH,HRK |
| Test standard | GB7407 national standard,JJG884 verification procedure |
| accuracy | 0.1HR |
| Dwell time | 1-60 seconds |
| Hardness reading | LCD |
| Max height of Specimen | 190mm |
| Throat depth | 165mm |
| dimension | 520×240×720mm |
| Power supply | AC220V/50HZ |
| Weight | 70kg |
| Measuring range | HRD:40-77 HRE:70-94 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-110 HRR:114-125 |
