HVS-5Z: | Max Force 5kgf, Small LCD, AUTO Turret, Digital Eyepiece | HVS-10Z: | Max Force 10kgf, Small LCD, AUTO Turret, Digital Eyepiece |
---|---|---|---|
HVS-30Z: | Max Force 30kgf, Small LCD, AUTO Turret, Digital Eyepiece | HVS-50Z: | Max Force 50kgf, Small LCD, AUTO Turret, Digital Eyepiece |
Optic System: | Total Magnification (μm): 100×, 200× | Test Space: | Vertical 165 * Throat 130mm |
Highlight: | 50HZ Vickers Hardness Testing Machine,Weights Loading Vickers Hardness Testing Machine,Digital Eyepiece Vickers Hardness Tester |

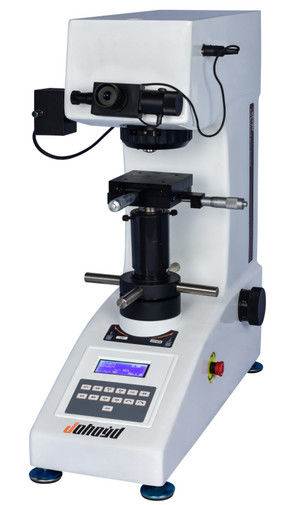

Digital Eyepiece AUTO Turret Vickers Hardness Tester by Weights Loading
Model: HVS-5Z, max force 5kgf, small LCD, AUTO turret, digital eyepiece
Technical Data Download: iqualitrol Vickers Hardness Tester HVS-5Z
Brief Introduction:
The iqualitrol digital AUTO TURRET Vickers hardness tester can meet the basic Vickers hardness test requirements. The upgraded digital micrometer eyepiece can directly read the measurement length, so that the measured value can be obtained more quickly and accurately.
Technical Specifications:
Model | HVS-5Z/10Z/30Z/50Z, AUTO TURRET |
display |
5-digit hardness value, 4-digit diagonal length (D1, D2), Hold time, number of tests, average, standard deviation |
Loading control | Automatic (load/hold/uninstall) |
Dwell time | 1~99 seconds |
Optical channel | Dual light channels (eyepieces and CCD camera channels) |
Optical system |
Objectives: 10×, 20× Eyepiece Magnification: 10× Total magnification (μm): 100×, 200× Measuring range (μm): 400 Resolution (μm): 0.125 |
Hardness measurement range | (5-3000)HV |
XY test stand (optional) |
Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
Maximum height of specimen | 165mm |
Throat depth | 130mm (distance from the center line of the indenter to the wall) |
Data output | Reserve built-in mini printer interface, (RS232 serial interface) optional installation |
voltage | AC220V/50HZ |
Overall size | 585×200×630mm |
Weight | 42Kg |
Functions and Features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.
2, Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;
3. HVS-5Z model can directly confirm the hardness value by measuring the actual length;
4, Optional LCD large screen; LCD large-screen display to facilitate observation, test conditions, the test process is straightforward;
5, optional built-in printer; test results and test data directly print;
Application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;
2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;
3, glass, wafers, ceramic materials;
