| Features: | Automatic Cutting From 3-axis X-Y-Z, Laser Alignment | Model: | Beta-300 Pro |
|---|---|---|---|
| Controller: | Intelligent Control & Touch Screen | Speed Range: | 800~3500rpm |
| Emergency Stop: | Press To Disconnect The Control Loop And Main Power | Cut Capacity: | Φ110mm |
| High Light: | Beta300 Pro Automatic Cut-Off Machine,Laser Alignment Metallographic Cut-Off Machine,Metallographic 3500rpm Cut-Off Machine |
||

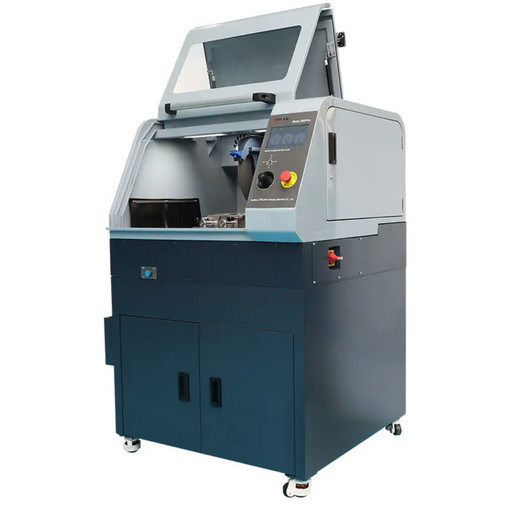

Laser Alignment And Larger Workbench Beta-300 Pro Automatic Cut-Off Machine
Features:
1. Equipped with 7"touch screen & saving 20 programs;
2. Can automatic cutting from 3-axis X-Y-Z, laser alignment which can display the cutting routine, rapid position;
3. Various cutting modes can meet different cutting requirements;
4. According to the hardness of the material and preset cutting current, intelligent adjustment & optimization the cutting progress;
5. T-slot vises which easy to clamping and matches variety of shaped fixture;
6. Pulsing cutting - adjust the cutting speed automatically which can get better surface quality;
7. Auto detect whether cut-off.
Application:
Ferrous metal, non-ferrous metal；
Castings, heat treatment samples, forgings；
Semiconductor, ceramics (with special cut-off wheels)；
Other metal and non-metal materials；
Technical parameter:
| Model | Beta 300 Pro | |
| Wheel | Speed | 800~3500rpm |
| Dia. | Φ300mm | |
| Arbor size | 32mm | |
| Electronic | Input | 3x380V/50Hz+ground line |
| Power | Total power 5.0KW, Cutting power 4KW | |
Safety | Emergency stop | Press to disconnect the control loop and main power |
| Safty lock | It can not start while the door open and the door can not open during cutting | |
| Joystick | Should operated by 2 hands simultaneously | |
| Over Current Protection | The machine will be stopped when the current over loaded | |
| Cutting Force | Monitor the cutting force, the machine will stop if the cutting force on theblade higher than thesafe value. | |
| Control | Display / Control | 7”touch screen |
| Z-axis (Chop Cutting) | Automatically: 0.01~5mm/s | |
| Y-axis (Table Feeding) | Automatically: 0.01~5mm/s | |
| X-axis (Paralleled Cutting) | Motor Control by Joystick | |
| Cooling Tank | Capasity Volume | 80L |
| Dimensions | 720*550*550mm(W*D*H, with pump installed) | |
| Connector | Water inlet: Φ19 inner diameter high pressure pipe; water outlet: Φ38 inner diameter hose. | |
| Water way | 2 Channels, flow: 50L/min | |
| Intelligent Cutting | Cutting Mode | Y-axial(Table-feed cutting) /Z-axial(Chop cutting)/Y-Z segmented cutting |
| Speed adjustment method | Constant speed cutting / pulse cutting / automatic speed adjustment | |
| Laser alignment | Yes | |
| Auto find the origin | Yes | |
| Auto detect whether cut-off | The machine will stop automatically after cut-off without setting the cutting depth | |
| Cutting Capacity | Max. dia | Φ110mm |
| Max. Square section | 80*200mm | |
| Table | Dimension | 280*536mm |
| T-slot | 12mm | |
| Travel | Z-axis :150mm ;Y-axis :200mm ;X-axis:80mm; | |
| Dimension | W*D*H | 979*940*1535mm(Close), 979*940*1881mm(Open) |
| Cutter | 376kg |
| The water tank | 34kg | |
