| Eyepiece: | Wide Field WF10X(Φ22mm) | Objectives: | Infinity Plan Achromatic Objective: 4X, 10X, 40X, 100X(spring, Oil) |
|---|---|---|---|
| Eyepieces Tube: | Trinocular, Inclination Of 30°. | Focus System: | Coaxial Coarse/fine Focus System |
| L2800T: | Trinocular Eyepiece | L2800PC: | Phase Contrast |
| High Light: | Wide Field Eyepieces Biological Microscope,Eyepieces Biological Microscope,Infinity Plan Achromatic Objectives |
||

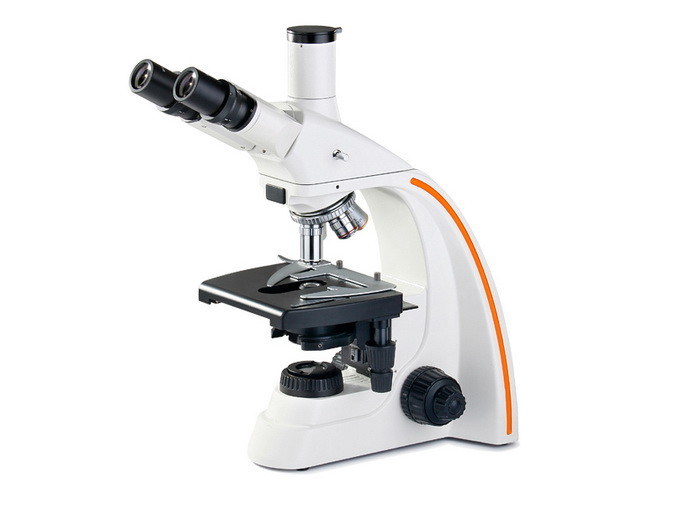

Infinity Plan Achromatic Objectives And Wide Field Eyepieces Biological Microscope
Brief Introduction:
Equipped with infinity plan achromatic objectives and wide field eyepieces, L2800 series biological microscopes have beautiful sculpt and provide clear image, wide field, convenience operation. They are ideally for biological science, medical research, agriculture and industry area.
Features:
Color corrected infinity optical system
Ergonomic design, low location of coaxial focus system
Wide field, excellent image and high resulition
LED and halogen lamp for options
Complete optional accessories
Optional Model:
L2800 - Binocular
L2800T - Trinocular
L2800PC - Phase Contrast
|
Standard Configurations |
|
|---|---|
| Eyepiece | Wide field WF10X(Φ22mm) |
| Objective | Infinity plan achromatic objective: 4X, 10X, 40X, 100X(spring, oil) |
| Eyepieces tube | Trinocular, Inclination of 30°. |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2µm. |
| Nosepiece | Quardruple(Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:193mmX155mm,movingrange:75mmX50mm) |
| Abbe condenser | NA.1.25 Rack & pinion adjustable |
| Filters | Blue filter and Ground glass |
| Illumination system | LED |
