| Binocular: | Model IStereo-120 | Trinocular: | Model IStereo-120T |
|---|---|---|---|
| Name: | Trinocular Stereo Zoom Microscope | Objective: | Stand 1X Plane Objective |
| WD: | Working Distance 91mm | Magnification: | 8x - 50x |
| Interpupillary: | 52mm - 76mm | Lens: | Parallel-optic Lens System |
| High Light: | Optical Stereo Zoom Microscope,Stereo Zoom Microscope Trinocular Head,Trinocular Head Microscope 50X |
||
Parallel Optical Stereo Zoom Microscopes with 8x to 50x and Trinocular Head
Technical Data Download: iqualitrol Stereo Microscope iStereo-120
Features:
◆ iStereo-120 (binocular) and iStereo-120T(trinocular);
◆ Parallel optical system, zoom body magnification range: 0.8X~5X;
◆ Orthoscopic image, large depth of field, long working distance, available to attach various accessories;
◆ Widely used in science research, modern biology, medicine, environment, farming, police, micro-electronics, semiconductors and etc which require high precision.
Parallel-Optics design ensures better, faster and more reliable identifications and sample measurements. With an industry-leading 22mm field of view, the parallel-optic lens system delivers users an image with extremely high resolution and a large depth of field that avoids distortion or aberration.
Technical Data:
| Zoom driver | Parallel optical system, 0.8X~5X continuous zoom body |
| Magnification | Standard total magnification: 8X~50X, the max. magnification: 225X. |

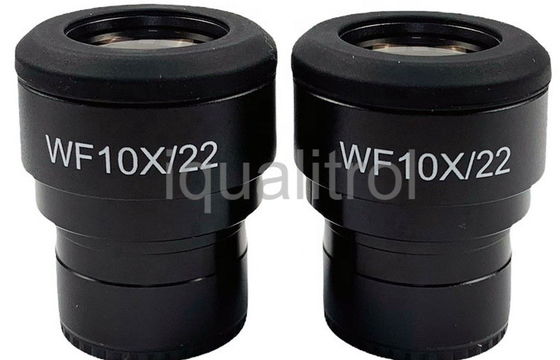

| Eyepiece | High eye point and wide field eyepieces(10X,Φ22mm). |
| Objective | 1X Plane objective |
| WD | 91mm |
| Interpupillary distance adjustment range (10X eyepiece) | 52mm~76mm |
| Diopter adjustment range | ±6 Diopter |
| Focus range | 50mm(Track stand: 100mm) |
| Binocular eyetubes | Inclined 45° |
| The holder and the head matching dimension | Φ76mm |
| Distance between the center of the pole and the center of the holder | 140mm |
| Diameter of the pole | Φ25mm |
| Diameter of the center working stage | Φ95mm |
| Eyepiece | Item | Specification of different auxiliary objective | |||
| 0.5X | 0.7X | 1X | 1.5X(Auxiliary) | ||
| 10X | Total Mag. | 4X~25X | 5.6X~35X | 8X~50X | 12X~75X |
| FOV(mm) | Φ55~Φ8.8 | Φ39.3~Φ6.3 | Φ27.5~Φ4.4 | Φ18.33~Φ2.93 | |
| 15X | Total Mag. | 6X~37.5X | 8.4X~52.5X | 12X~75X | 18X~112.5X |
| FOV(mm) | Φ42.5~Φ6.8 | Φ30.36~Φ4.86 | Φ21.25~Φ3.4 | Φ14.17~Φ2.27 | |
| 20X | Total Mag. | 8X~50X | 11.2X~70X | 16X~100X | 24X~150X |
| FOV(mm) | Φ35~Φ5.6 | Φ25~Φ4 | Φ17.5~Φ2.8 | Φ11.67~Φ1.87 | |
| 30X | Total Mag. | 12X~75X | 16.8X~105X | 24X~150X | 36X~225X |
| FOV(mm) | Φ22.5~Φ3.6 | Φ16.1~Φ2.57 | Φ11.25~Φ1.8 | Φ7.5~Φ1.2 | |
| WD(mm) | 186 | 135 | 91 | 40 | |
Notes:
1. Please use 1X plane objective together when using 1.5X auxiliary objective.
2. When 0.5X or lower magnification auxiliary objective applied, track stands can not be used.
Feature accessories:
1, Objectives
◆ 0.5X achromatic objective PS-W0.5, working distance: 186mm
◆ 0.7X achromatic objective PS-W0.7, working distance: 135mm
◆ 1X plane achromatic objective PS-WP1.0, working distance: 91mm
◆ 1.5X achromatic auxiliary objective PS-W1.5, working distance: 40mm.(Be used with PS-WP1.0 together)
2, Trinocular beam splitter
◆ PS-T tension bar trinocular beam splitter' permeant light ratio throught the eyepiece observation: Left 100%, right 0%
◆PS-T1 trinocular beam splitter' permeant light ratio throught the eyepiece observation: Left 50%, right 50%
What is Stereo Microscopes?
The stereo or stereoscopic is an optical microscope variant designed for low magnification observation of a sample, typically using light reflected from the surface of an object rather than transmitted through it.
The instrument uses two separate optical paths with two objectives and eyepieces to provide slightly different viewing angles to the left and right eyes. This arrangement produces a three-dimensional visualization of the sample being examined.
Stereomicroscopy overlaps macrophotography for recording and examining solid samples with complex surface topography, where a three-dimensional view is needed for analyzing the detail.
The stereo microscope is often used to study the surfaces of solid specimens or to carry out close work such as dissection, microsurgery, watch-making, circuit board manufacture or inspection, and fracture surfaces as in fractography and forensic engineering. They are thus widely used in manufacturing industry for manufacture, inspection and quality control. Stereo microscopes are essential tools in entomology.
