Digital Vickers Hardness Tester QHVT-10Z With Touch Screen And Vickers Operation System

Name: Digital Vickers Hardness Tester QHVT-10Z With Touch Screen And Vickers Operation System
Brand: iqualitrol
SKU: QHVT-10Z
Rating: 4.5 (182 reviews)

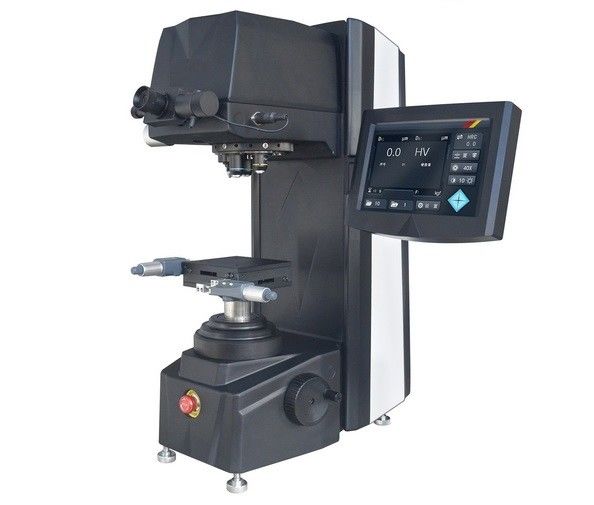

Large Image : Digital Vickers Hardness Tester QHVT-10Z With Touch Screen And Vickers Operation System

Product Details:

Brand Name:	iqualitrol
Model Number:	QHVT-10Z

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	T/T, Western Union
Supply Ability:	10 Sets per Month

Contact Now

Detailed Product Description

Machine Body Shell:	Machine Body Apply Aluminum Alloy Die-casting Process, Strong And Stable	Motor Loading:	Motor Direct Drive Type Vertical Loading Test Force, The Force Value Is More Stable
Lifting Structure:	Special Material Lifting Shaft, More Stable Structural Design	Turret:	The Turret Is Faster And The Testing Efficiency Is Higher
QHVT-10Z:	Test Force 0.3kgf To 10kgf	QHVT-50Z:	Test Force 0.5kgf To 50kgf
Highlight:	0.1 HV Vickers Hardness Testing Machine , Vickers Hardness Tester with Touch Screen , Digital Vickers Hardness Tester Machine

Digital Vickers Hardness Tester with Touch Screen and Vickers Operation System

Technical Specifications:

Model		QHVT-10Z	QHVT-50Z
Test force	kgf	0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf	0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
	N	2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N	4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N
Test Modes		HV/HK
Vickers Range		1HV~2967HV
Vickers Resolution		0.1HV
Loading Control		Auto (Loading/dwell/unloading)
Turret		Auto Turret
Data Output		Built-in Printer, RS232
Display		Touch Screen, support data saving
Hardness Conversion		HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Eyepiece		10x digital eyepiece
Objectives		10x,40x	10x,20x
Total Magnification		100x,400x	100x,200x
FOV		10x:800μm, 40x:200μm	10x:800μm, 20x:400μm
Length Resolution		10x:0.25μm, 40x:0.06μm	10x:0.25μm, 20x:0.13μm
Dwell Time		0~60s
Illumination		LED Light
X-Y Anvil		Size: 120×120mm; Travel: 25×25mm; Resolution: 0.001mm
Max Height of Specimen		175mm
Throat		140mm
Power supply		AC220V,50Hz
Executive Standards		ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Dimension		495×575×670mm
Weight		Net 35kg, Packing weight 55kg
