| Features: | Rugged And Reliable With Low Noise | Model: | MC-250 |
|---|---|---|---|
| Cut-off Blade: | 250mm /10 Inch Diameter | Cut Mode: | Manually Chop Cutting |
| Cooling System: | Water Cooling 60L Tank | View Window: | High-brightness Lighting System |
| Highlight: | Water cooling Manual Metallographic Cutting Machine,2800rpm Metallographic Cutter Machine,MC-250 Metallographic Cutter Machine |
||

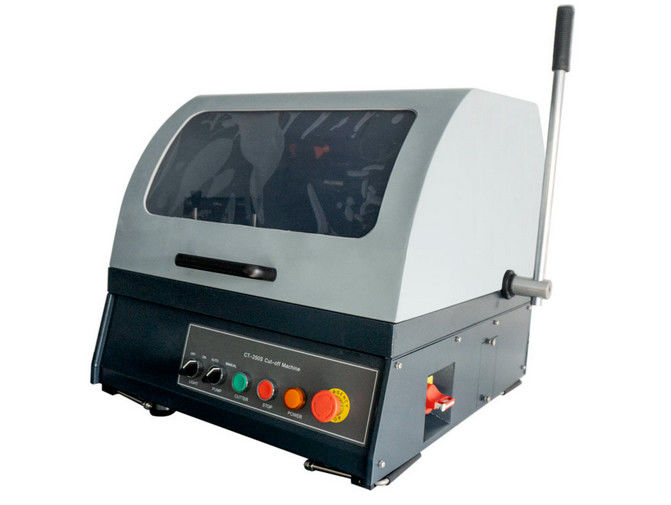

Manual Metallographic Cut-Off Machine with fixed speed 2800rpm MC-250
Technical Data Download:
iqualitrol Metallographic Manual Cutting Machine MC-250
Features:
1. Manually chop cutting, operation easily;
2. Omron electronic switch accessories, safe and reliable;
3. Huge observation window & high-brightness lighting system makes to observe the cutting process;
4. Super cooling system make sure the sample won’t burning during cutting;
5. The separate water tank and filter system can collect the swarf easily and Extend the life of the cut-off machine;
6. Rugged and reliable with low noise.
Application:
Ferrous metal, non-ferrous metal;
Castings, heat treatment samples, forgings;
Semiconductor, ceramics (with special cut-off wheels);
Other metal and non-metal materials.
Technical Specifications:
| Model | MC-250 |
| Max. Dia | Φ250 mm |
| Cutting Capacity | Φ80 mm |
| Feeding Mode | Manual |
| Dimension of Table | 210*230 mm |
| Power | 2.2 KW |
| Power supply | 3x380V/50Hz Standard (220,440,480V/60Hz Option) |
| Wheel Speed | 2800rpm |
| Weight | 100 kg |
| Dimension W*D*H |
664*684*621mm (Close), 664*898x829mm (Open) |
| Volume of the tank | 60L |
| Dimension of the tank | 620x420x520mm |
