Product Details:
Payment & Shipping Terms:
|
| Model: | ZXQ-5 | Mould: | 25, 30, 40, 50mm |
|---|---|---|---|
| Loading: | Hydraulic Pressure Loading | Cooling: | Water Cooling |
| Dwell Time: | 100-2999 Seconds | Pressure: | Range 0-2MPa |
| Highlight: | Automatic Metallographic Sample Mounting Equipment,Water Cooling Metallographic Sample Mounting Equipment |
||

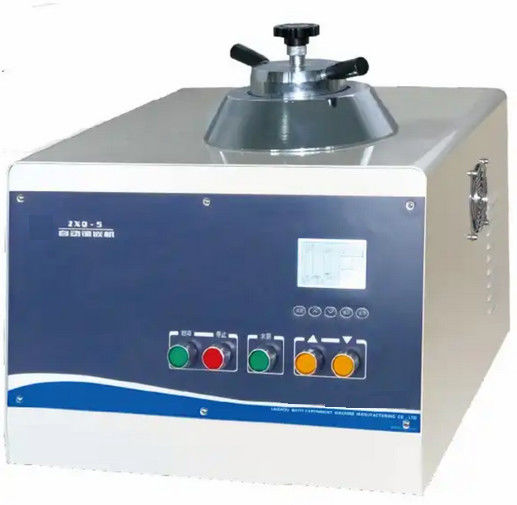

Water Cooling ZXQ-5 Automatic Metallographic Sample Mounting Equipment
Brief Introduction:
iqualitrol ZXQ-5 is an automatic mounting press for metallographic specimen, and can automatically finish the heating temperature, the dwell time, and cooling. The operator can change 4 specification patterns according to the difficult specimens. It can make 2 specimens at one time.
ZXQ-5 is used for setting up those irregular specimens. Then the specimens can fix in with the request of the surface. It also can protect the edge and keep out of the abrasion.
The specimen size is limited by the Semi-automatic or Automatic Grinder/Polisher. With this view ,this machine is one of the necessary equipment in the metallographic lab.
ZXQ-5 is automatic mounting press for metallographic specimen. It is fit of all thermosetting materials because of the cooling system .It can finish automatically with the heating temperature, the DWELL time, and acting force.
Technical Specifications:
| Model | ZXQ-5 |
| Sample Diameter | 25, 30, 40, 50mm |
| Heating Ranges | 90-190℃ |
| Pressure Range | 0-2MPa |
| Cooling temperature range | 40-90℃ |
| Dwell Time Range | 100-2999s |
| Cooling mode | Cooling |
| Heating power | 1600W |
| Input voltage | 220V/50Hz |
| Dimension | 700 X 550 X 515mm |
| Net weight | 110kg |
Mounting Parameters:
| Thermo-setting materials | Diameter of specimen | Volume of inserted powder | Heating temperature | Temperature dwell time | Time for cooling | Pressure |
|
Urea formal moulding powder (white) |
φ25 | 10ml | 150℃ | 10min | 15min | 300-1000kpa |
| φ30 | 20ml | 150℃ | 10min | 15min | 350-1200kpa | |
| φ40 | 30ml | 150℃ | 10min | 15min | 400-1500kpa | |
| φ50 | 40ml | 150℃ | 10min | 15min | 500-2000kpa | |
|
Insulating moulding powder (black) |
φ25 | 10ml | 135-150℃ | 8min | 15min | 300-1000kpa |
| φ30 | 20ml | 135-150℃ | 8min | 15min | 350-1200kpa | |
| φ40 | 30ml | 135-150℃ | 8min | 15min | 400-1500kpa | |
| φ50 | 40ml | 135-150℃ | 8min | 15min | 500-2000kpa |
