Ultraviolet Light UV Cold Metallographic Mounting Press UV Mount Completely Transparent Sample

Ultraviolet Light UV Cold Mounting Press UVmount Completely Transparent Sample

Brief Introduction:

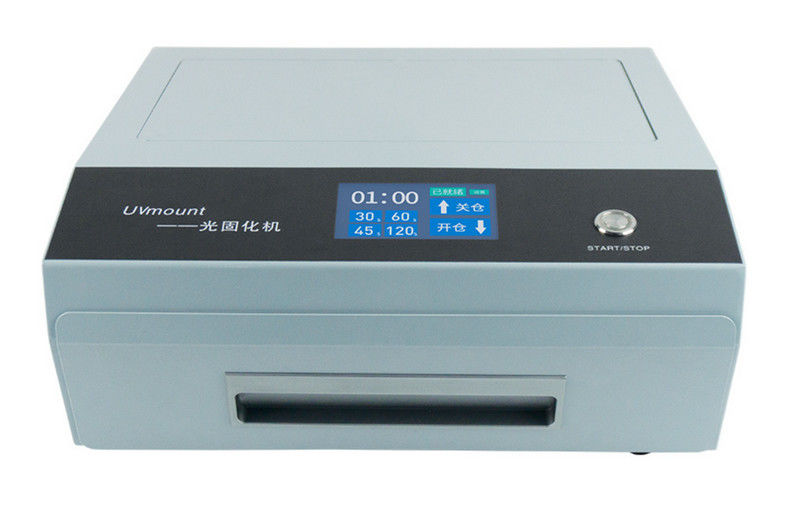

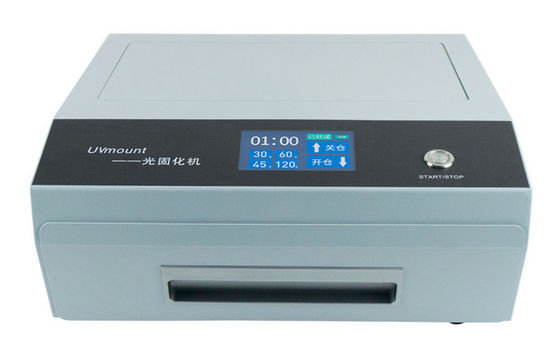

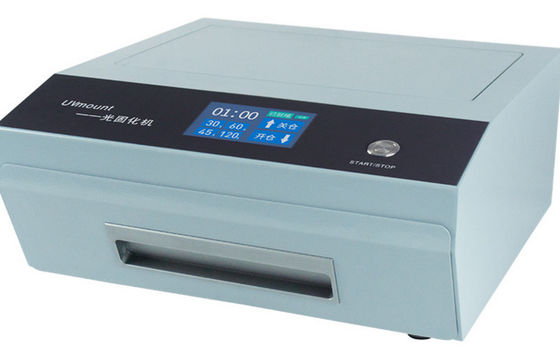

UV cold mounting Press iqualitrol UVmount is for cold mounting sample preparation that utilizes UV light to rapid curing resins.

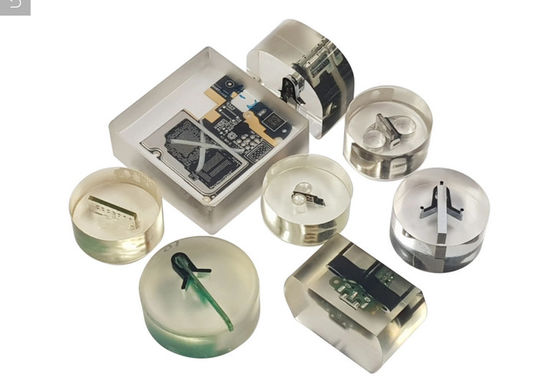

Pour the resin into a transparent mold, put it into the UVmount, and it only takes 60 seconds to get a completely transparent mounted sample.

The sample preparation is fast and few of air bubbles, which can meet the requirement of high-quality sample preparation.

Features:

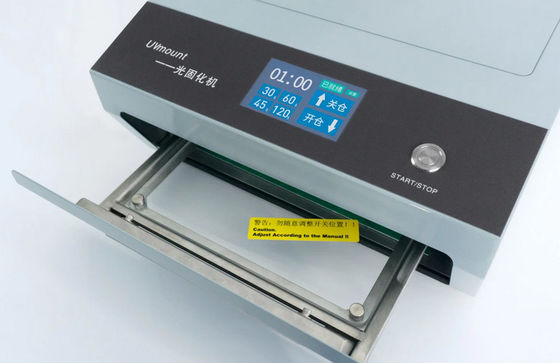

Door automatic/electric open & close;

Realize "one key start", automatically complete the process and sample delivery;

4.3-inch touch screen display for easy operation;

The curing time is adjustable, with 4 preset timer buttons;

Upper and lower double light source ensures no dead angle irradiation;

Uniform curing from the inside out;

The curing calorific value is low, and the maximum temperature during curing is lower than 90 degrees;

The temperature of the sample at the end of curing is lower than 60 degrees;

Dual fan cooling system;

Can be equipped with air extraction and air purifier to prevent the leakage of unpleasant odors. (optional item)

Technical Specifications:
