Product Details:
Payment & Shipping Terms:
|
| Model: | Xsalt-120 | Internal: | Dimension: 120x100x50cm |
|---|---|---|---|
| Temp: | (NSS ACSS) 35°C±1°C | Air Pressure: | 1.00±0.01kgf/cm2 |
| PH: | NSS: 6.5~7.2, CASS: 3.0~3.2 | Application: | Corrosion Of Electronic Equipment, Metallic Material |
| Highlight: | ASTM G85 Salt Spray Test Chamber,Precision Salt Spray Test Chamber |
||

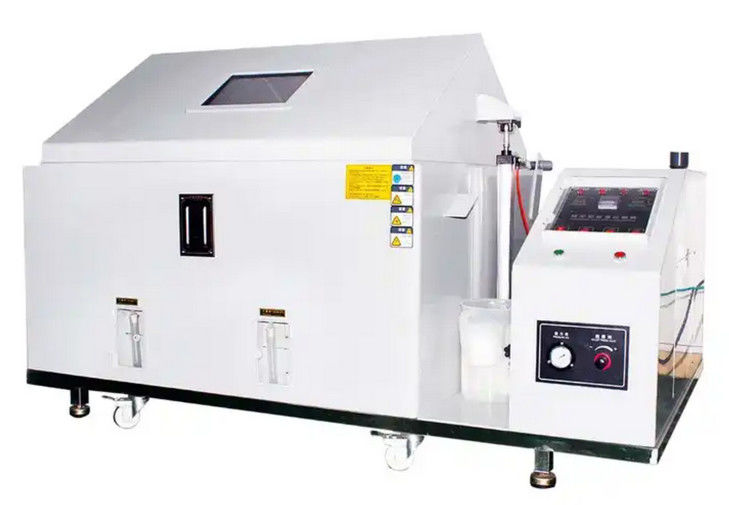

ASTM G85 Salt Spray Test Machine Precision Salt Fog Spray Testing Machine XSalt-120
Brief Introduction:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc.
Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method.
The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Technical Specifications:
| Model | Xsalt-60 | Xsalt-90 | Xsalt-120 | Xsalt-160 | Xsalt-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) |
107x60 x118 |
141x88 x128 |
190x110 x140 |
230x130 x140 |
270x150 x150 |
| Inside temp |
test method (NSS ACSS)35°C±1°C; Corrosion resistance test method (CASS)50°C±1°C |
||||
| temp | (NSS ACSS) 35°C±1°C; (CASS) 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| solution volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 3.0~3.2 | ||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||
| Power |
AC220V 1Φ10A |
AC220V 1Φ15A |
AC220V 1Φ20A |
AC220V 1Φ20A |
AC220V 1Φ30A |
Note:
1, Xsalt-60 and Xsalt-90 do not meet standard of
ISO 9227:2022 Corrosion tests in artificial atmospheres — Salt spray tests
As the cabinets of these 2 models have capacity less than 0.4m3.
2, The above specifications are for reference only, the actual specifications for the main quotation.
3, Custom made is available according to customers’ special requirements.
