| TD-4A: | Microprocessor Control, Less Noisily | Flexible Axle Driven System: | Drive The Rotor Directly, Smooth In Operation And Small Vibration |
|---|---|---|---|
| Brushless Motor: | Brushless Motor, Free Maintenance, No Powder Pollution, Quick In Speed Up And Down | Rotors: | Suitable For Different Specifications Meet Customers’ Different Requirements Of Separation |
| Control System: | Micro Computer Control System, LCD Display The RCF,time And Speed. | Compact Design: | Electric Lid Lock, Compact Design, Super Speed And Imbalance Protection |

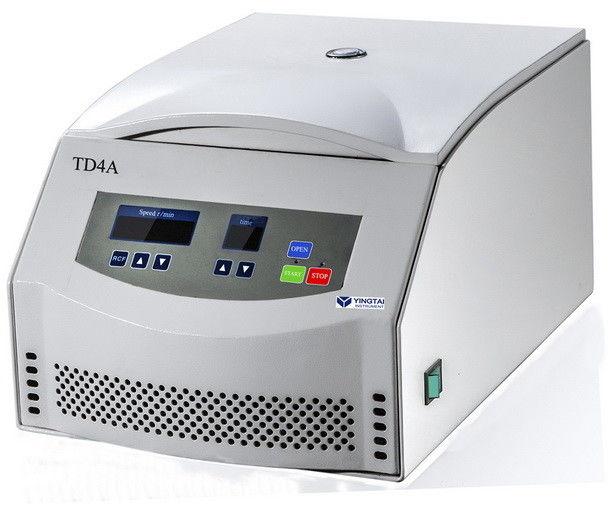

Microprocessor Control TD-4A Low Speed Centrifuge with Brushless Motor
Features:
1. TD4A centrifuge is of microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.
2. Brushless motor, free maintenance, no powder pollution, quick in speed up and down.
3. The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
4. There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.
5. Micro computer control system, LCD display the RCF,time and speed.
6 .Electric lid lock, compact design, super speed and imbalance protection.
Technical Specifications:
| Max. Speed | 4000rpm |
| Max. RCF | 2470×g |
| Max. Capacity | 24×10ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | Normal |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 485×320×255mm |
| Net Weight(Kg) | 18KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TD4A:
| Order No. | Rotor No. | Max Speed (rpm) | Max Volume | Max.RCF (×g) |
| NO31605 | Angle Rotor | 4000 | 30×7/5ml | 2250 |
| NO31604 | Angle Rotor | 4000 | 18×10ml | 2250 |
| NO31607 | Angle Rotor | 4000 | 24×10/7/5ml | 2200 |
| NO31602 | Angle Rotor | 4000 | 12×20/15/7/5ml | 2150 |
| NO32667 | Angle Rotor | 4000 | 8×7/5ml | 1800 |
| NO31606 | Angle Rotor | 4000 | 6×50ml | 2100 |
| NO32665 | Swing Rotor | 4000 | 6×10ml | 2390 |
