Product Details:
Payment & Shipping Terms:
|
| Model: | TG-16E | Tiers Protection: | 3 Tiers Protection Steel Cover And Get The Ideal Centrifugation Result |
|---|---|---|---|
| Rotor Connection: | Rotor Is Connected To Spindle By Specialized Taper Sleeve, Loading Simple And Quick, No Direction. | Feature: | Electric Lid Lock, Super Speed, Imbalance Protection |
| Centrifuge Body Material: | Centrifuge Body Is Made Of High Quality Steel, Stainless Steel Chamber, Safe And Reliable | LED Display: | Microprocessor Control, LED Display Which Indicator The Speed, Time, RCF In Operation |

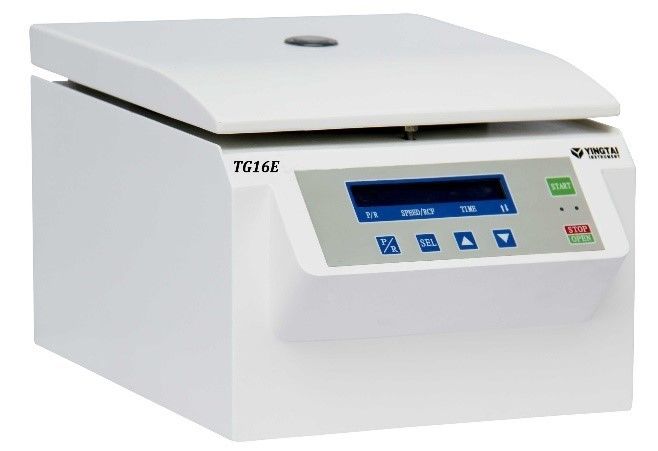

LED Display TG16E Micro High Speed Centrifuge with Electric Lid Lock
Features:
1. Brushless motor, no pollution, free-maintenance;
2. Microprocessor control, LED display which indicator the speed, time, RCF in operation, 10 kinds of brake setting, operate simply;
3. Electric lid lock, super speed, imbalance protection. The centrifuge body is made of high quality steel, stainless steel chamber, safe and reliable;
4. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction;
5. 3 tiers protection steel cover and get the ideal centrifugation result.
Technical Specifications:
| Max. Speed | 16000rpm |
| Max. RCF | 19040×g |
| Max. Capacity | 10×5ml |
| Time Range | 0~99h59min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | Normal |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | / |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 465×320×275mm |
| Net Weight(Kg) | 18KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TG16E:
| Order No. | Rotor No. | Max Speed (rpm) |
Max Volume (ml) |
Max.RCF(×g) |
| NO31001 | Angle Rotor | 16000 | 40×0.2ml | 19040 |
| NO31002 | Angle Rotor | 16000 | 24×0.5ml | 18480 |
| NO31003 | Angle Rotor | 16000 | 12×1.5/2ml | 16260 |
| NO31004 | Angle Rotor | 16000 | 10×5ml | 17880 |
| NO31005 | Angle Rotor | 14000 | 20×1.5/2ml | 15580 |
| NO30403 | Angle Rotor | 14000 | 24×1.5/2ml | 17950 |
| NO30448 | PCR Rotor | 13000 | 8×8PCR | 11540 |
