Product Details:
Payment & Shipping Terms:
|
| SQ-60S: | Manual Cutting Machine, Water Cooling | Shell Material: | Cutting Chamber And The Door Are Made Of Stainless Steel |
|---|---|---|---|
| Features: | Large Volume Cutting Chamber, Safety Protection | Speed: | 2800rpm |
| Cut Diameter: | Φ60mm | Cutting Blade: | Φ250×1.5×32mm |

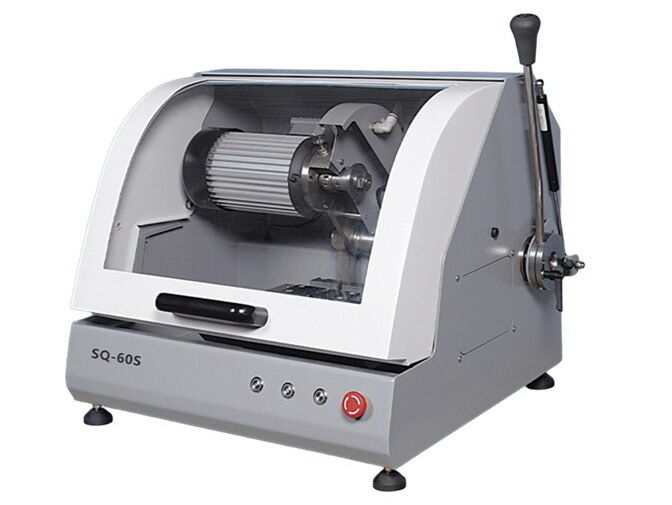

Manual Metallographic Cutting Machine SQ-60S with Water Cooling System
Brief Introduction:
The iqualitrol SQ-60S is a manual cutting machine, operated by manually pulling the handle to control the cutting blade for cutting samples.
The internal parts of the cutting chamber and the door are made of stainless steel. The machine cools the samples through a cooling system to prevent overheating and damage to the tissue during the cutting process.
SQ-60S has safety protection features, large volume cutting chamber makes it easier for the operator to use, and it is one of the essential sample preparation devices for metallographic testing in colleges, universities, and factories.
Technical Specifications:
| Model | SQ-60S |
| Input voltage | Three-phase 380V 50Hz |
| Spindle speed | 2800 RPM |
| Cutting blade specifications | Φ250×1.5×32mm |
| Maximum cutting diameter | Φ60mm |
| Input power | 2.4KW |
| Table size | 320mm×293mm |
| Overall dimensions | 700mm×636mm×568mm |
| Net weight | 82kg |
| Net weight of the water tank | 14kg (including pump) |
