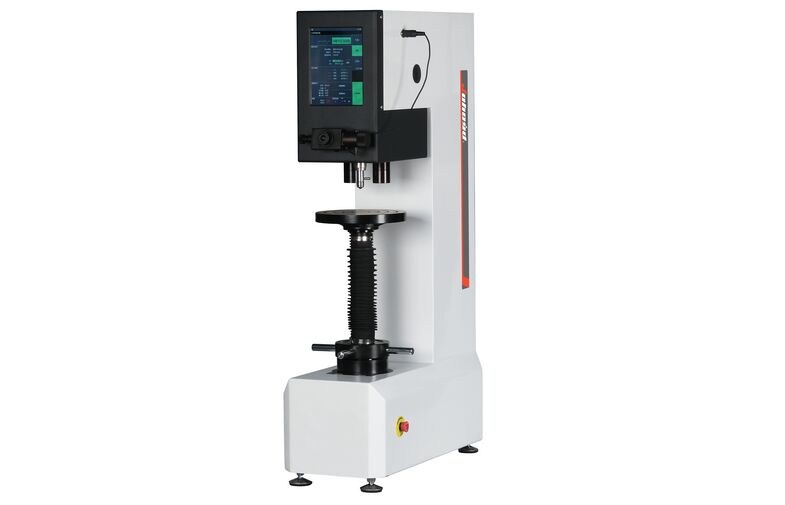

Touch Screen Dual Objective Automatic Turret Digital Brinell Hardness Tester HBST-3000ZS

Large Image : Touch Screen Dual Objective Automatic Turret Digital Brinell Hardness Tester HBST-3000ZS

Product Details:

Brand Name:	iqualitrol
Model Number:	HBST-3000ZS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Pallet
Delivery Time:	10 Working Days
Payment Terms:	T/T, Western Union
Supply Ability:	10 Sets per Month

Contact Now

Detailed Product Description

Measuring Eyepiece:	Digital Micrometer Eyepiece And Data Calculation System, Enabling Hardness Values To Be Displayed Directly With A Single Click	Data Output:	Optional USB Export Of Measurement Data, Or Editing And Exporting Test Reports Through Host Computer Software
Data Saving:	Can Store 100 Sets Of Test Data, Display Average Value And Test Number	Stepper Motor:	For Automatic Loading And Unloading Of Test Force, Producing Less Noise During Testing
Calibration:	HBST-3000ZS Comes With Calibration Function	Indentation Measurement:	Automatically Inputs Indentation Diameter, Displays Hardness Values

Touch Screen Dual

Objective Automatic Turret Digital Brinell Hardness Tester HBST-3000ZS

Download Technical Data: Brinell Hardness Tester HBST-3000ZS

Technical Specifications:

Model	HBST-3000ZS
Brinell scale	HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test force (11 levels)	31.25kgf(306.5N), 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Hardness reading	Automatic calculation
Hardness conversion	Conform to ASTM E 140
Screen	8-inch touch screen,
Loading process	Real-time display of loading time and loading force curve, loading time <8s
Load control	Automatic (loading/holding/unloading)
Turret	Automatic turret, Brinell indenter and two objective lenses
Vertical Space	370mm (Maximum test piece height)
Depth Throat	170mm (Indenter to outer wall distance)
Objective lens	1X, 2X
Eyepiece	20X
Total magnification	20X, 40X
Resolution	20x: 0.6um; 40x: 0.30um
Dwelling time	2-99s
Hardness test range	3.18~653HBW
Implementation standard	EN ISO 6506, , ASTM E-10-08, GB/T231.2,JJG150 -2005
Data output	Built-in printer, or optional USB and measurement software
Power supply	AC220+5%,50~60Hz
Dimensions (mm)	5952451000mm
Main unit weight	About 175kg

Tag:

Digital Brinell Hardness Tester,

Brinell Hardness Test Equipment,

Brinell Hardness Apparatus

Contact Details

Dongguan Quality Control Technology Co., Ltd.

Contact Person: Mr. Raymond Chung

Tel: 86-13711988687

Fax: 86-769-22784276

Other Products

Automatic Heavy Duty Brinell Hardness Tester HBS-3000DZ with One Key Operation

Model: HBS-3000DZ

Lifting Structure: One-button start, automatic ascending and descending of Z axis

Control System: fully automatic closed-loop pressure sensor control system

Test Process: automated, the operation is simple, and there is no human error

Fully Automatic Brinell Hardness Tester MHBS-3000AZF with Motorized Lifting Structure

Automatic measurement: automatically or manually capture the indentation, measure the indentation diameter and calculate the corresponding Brinell hardness value

Equipment control: supports one click start of loading and unloadin, turret homing and automatic measurement, independent control of the rise and fall of the hardness tester platform

Hardness value conversion: can convert the measured Brinell hardness value HB into other hardness values, such as HV, HR, etc.

Data statistics: automatically calculates the average value, repeatability error, variance and other statistical values of the measured hardness

Automatic Digital Brinell Hardness Tester iqualitrol iBrin-3000V with Motorized Lifting System

turret: 4 Ball Indenters And Two Sets (1x And 2x) Of Objective Lenses

touch screen: Set Test Force, Dwell Time, Adjust Light Source, Display Indentation Length, Hardness Value

test report: WORD Or EXCEL Reports, Which Can Be Directly Saved Or Output By An External Printer

interface modes: USB Interface, RJ45LAN, WLAN, RS232 Port

Digital Brinell Hardness Tester 300MHB-3000 Close Loop Sensor Control System

Model: 300MHB-3000

Microscope: Digital 20X Measuring Microscope

Loading Forces: 12 Test Scales; 10 Levels Of Test Force, Force Range: 62.5kgf-3000kgf

Data Process: USB And RS232 Interfaces, Optional Printer

Max Height 300mm Electronic Brinell Hardness Tester IQUALITROL 400HB-3000 with Touch Screen

Model: 400HB-3000

Test Space: Height 300mm * Depth 150mm

Control System: high-speed processor, fully automatic closed-loop pressure sensor control system

Display: 7-inch LCD touch screen, reading microscope under the machine measurement, manual input of indentation diameter



	Factory Address:No. 88 Jiaolian Yiheng Rd, Wanjiang District, Dongguan, China, 523046

	Sales office:Room 301, Building No.1, No. 2 Jiaolian Yiheng Rd, Wanjiang District, Dongguan, China, 523046

	+86--13711988687

	sales@iqualitrol.com

Micro Vickers Hardness Tester

Vickers Hardness Testing Machine

Rockwell Hardness Test Machine

Brinell Hardness Testing Machine

Metallographic Cutting Machine

Metallographic Polishing Machine

Metallographic Mounting Press

Lab Centrifuge Machine

Vision Measuring Machine

Temperature Test Chamber

Salt Spray Test Chamber

Stereo Zoom Microscope

Portable Hardness Tester

Digital Metallurgical Microscope

Universal Material Testing Machine

Non Destructive Testing Equipment

Industrial Video Borescope

Micro Vickers Hardness Tester

Vickers Hardness Testing Machine

Rockwell Hardness Test Machine

Touch Screen Dual Objective Automatic Turret Digital Brinell Hardness Tester HBST-3000ZS

Touch Screen Dual Objective Automatic Turret Digital Brinell Hardness Tester HBST-3000ZS

Digital Brinell Hardness Tester,

Brinell Hardness Test Equipment,

Brinell Hardness Apparatus

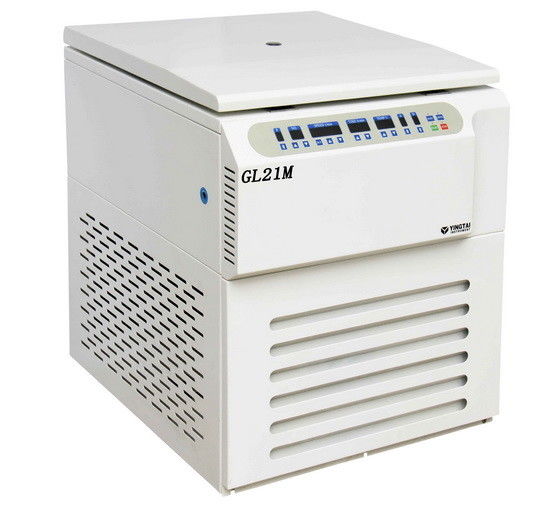

GL21M High Speed Refrigerated Centrifuge
