| Model: | 400HB-3000 | Test Space: | Height 300mm * Depth 150mm |
|---|---|---|---|
| Control System: | High-speed Processor, Fully Automatic Closed-loop Pressure Sensor Control System | Display: | 7-inch LCD Touch Screen, Reading Microscope Under The Machine Measurement, Manual Input Of Indentation Diameter |

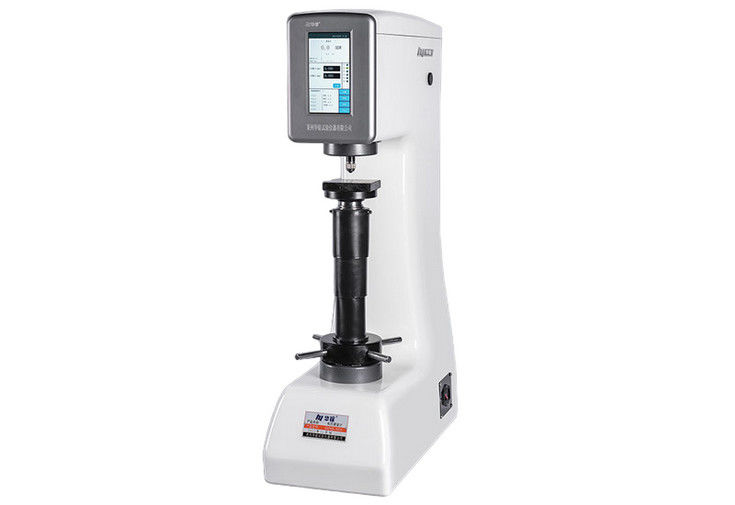

Max Height 300mm Electronic Brinell Hardness Tester 400HB-3000 with Touch Screen
Technical Parameters:
| Measuring range: | 8-650HBW |
| Test force |
306.5, 612.9, 980.7, 1226, 1839, 2452, 4903.5, 7355, 9807, 14710.5, 29421(N) 31.25, 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000(kgf) |
| Brinell Scales | HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Max. height of test piece | 300mm |
| Depth of Throat | 150mm |
| Dimensions: | 570*330*930mm |
| Voltage | AC220V/50HZ |
| Weight | 150kg |
Main Features:
● The test force loading mechanism designed by applying Pascal's law, stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;
● The test force loading mechanism, pressure sensor and Brinell spindle indenter are directly connected to form the Brinell hardness test head technology - bistable direct-drive hardness tester loading unit, which has obtained a national invention patent and two utility model patents;
● Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of loading and unloading test force, high force value accuracy;
● Cast iron casing, solid structure, good rigidity, reliable, durable, high test efficiency;
● 7-inch LCD touch screen, reading microscope under the machine measurement, manual input of indentation diameter to display hardness value;
● Test force application-holding-unloading is fully automatic, and the time-force value curve is dynamically displayed during the loading and unloading process;
● The screen can display the test force, indentation length, holding time, number of measurements, etc.;
● 13 test scales; 11 test force levels, force range: 31.25kgf-3000kgf;
● With database storage function, test data can be stored synchronously and exported;
● Equipped with USB and RS232 interfaces, convenient for users to process data;
● The accuracy complies with GB/T231.2, ISO6506-2 and American ASTM E10.
Scope of application:
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;
● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
