Product Details:
Payment & Shipping Terms:
|
| Turret: | 4 Ball Indenters And Two Sets (1x And 2x) Of Objective Lenses | Touch Screen: | Set Test Force, Dwell Time, Adjust Light Source, Display Indentation Length, Hardness Value |
|---|---|---|---|
| Test Report: | WORD Or EXCEL Reports, Which Can Be Directly Saved Or Output By An External Printer | Interface Modes: | USB Interface, RJ45LAN, WLAN, RS232 Port |
| Software Function: | Calibrate, Manually Fine-tune, Set Upper And Lower Limit Alarms | Auto Lifting Platform: | Adopts Precise Structure And Has High Stability |
| Highlight: | Microprocessor Control Low Speed Centrifuge,Laboratory Low Speed Centrifuge,Biochemistry Low Speed Centrifuge |
||

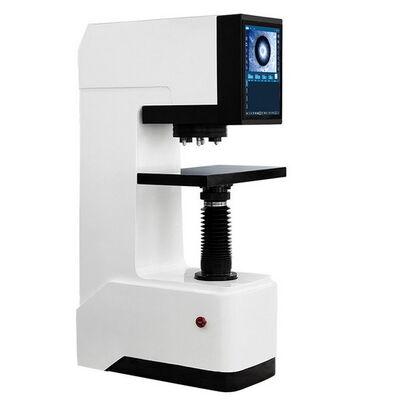

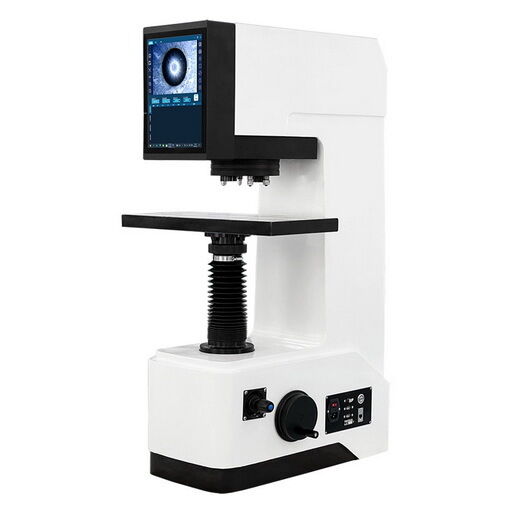

Automatic Digital Brinell Hardness Tester iBrin-3000V with Motorized Lifting System
Main Features:
1, The iqualitrol iBrin-3000V has 12-level test force and 16 kinds of Brinell hardness test scales, which is suitable for testing various metal materials;
2, iBrin-3000V has 4 ball indenters and two sets (1x and 2x) of objective lenses, when measuring different samples, there is no need to replace the indenter frequently.
3, The automatic lifting platform adopts precise structure and has high stability. After applying the test force, it automatically returns to the focusing surface;
4, The hardness tester and the microcomputer are integrated, equipped with Windows system, with all the functions of the computer;
5, The hardness test results can generate WORD or EXCEL reports, which can be directly saved or output by an external printer, which is convenient for users to read and study in the future;
6, The instrument has USB interface, RJ45LAN, WLAN, RS232 port, which can be connected to the network and other devices, so that users have more optional functions.
Application Ranges:
The Brinell hardness test is mainly used for the hardness determination of cast iron, steel, non-ferrous metals and soft alloys.
In addition, it can also be used for the determination of the hardness of some non-metallic materials such as hard plastics and bakelite.
Technical Specifications:
| Commodity | iqualitrol Fully Automatic Brinell Hardness Tester | |
| Model | iBrin-3000V | |
| Test Force | kgf | 30kgf, 31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N | 29.42N, 306.45N, 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
| Testing scales | HB 10/3000, HB 10/1500, HB 10/1000, HB 5/750, HB 10/500, HBW 10/250, HB5/250, HB 2.5/187.5, HB 10/125, HB5/125, HB10/100, HB 5/62.5, HB2.5/62.5, HB5/31.25, HB2.5/31.25, HB1/30 | |
| Test Range | 8～650HBW | |
| Loading Method | Automatic (Loading/Dwell/Unloading), Automatic lifting | |
| Hardness Reading | 12-inch Touch Screen, Automatic Measuring | |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBS, HBW | |
| Data Output | USB, RJ45LAN, WLAN, RS232 | |
| Turret |
Automatic Recognition and Shifting (Four Indenters, Two Objectives) |
|
| Objective | 1X, 2X | |
| Effective Field of View | 1X:6mm, 2X:3mm | |
| Min. Measuring Unit | 1X:4.6μm, 2X:2.3μm | |
| Dwell Time | 0~95s | |
| Max. Sample Height | 280mm | |
| Throat Depth | 200mm | |
| Power Supply | AC 220V/110V±5%, 50~60 Hz | |
| Dimension |
Machine Dimension: 595*350*1070mm, Packing Dimension: 830*490*1300mm |
|
| Weight | Net Weight: 270kg,Gross Weight: 330kg | |
Auto Turret of iBrin-3000V
