| Cooling System: | Water Cooling To Prevent Overheating And Damage To The Tissue | Cutting Modes: | Support Both Manual And Automatic Cutting |
|---|---|---|---|
| Rotation Speed: | 2100rpm | Cutting Disc: | φ350×2.5×32mm |
| Cut Diameter: | φ80mm | Feed Speed: | 1-15mm/min |

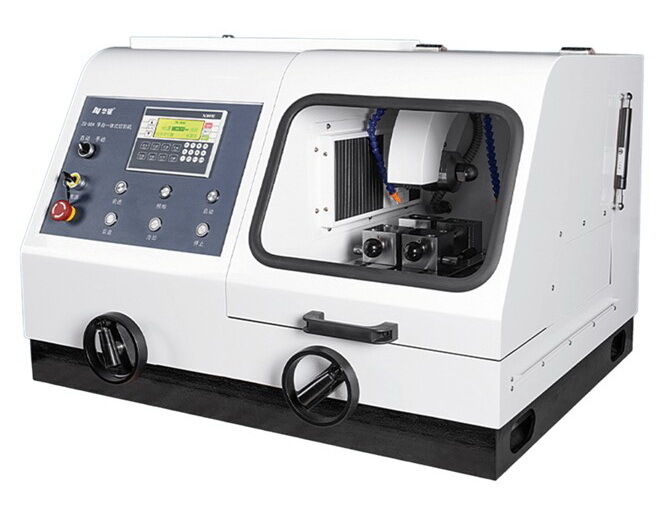

Manual and Automatic Metallographic Cutting Machine iCut-80A Speed 2100rpm
Brief Introduction:
The iqualitrol iCut-80A consists of components such as the body, electrical control box, cutting chamber, motor, cooling system, and cutting wheel.
The machine cools the sample through the cooling system to prevent overheating and damage to the tissue during the cutting process.
iCut-80A also allows for the selection of three different cutting modes based on the type of sample being cut, and enables the setting of cutting speed and stroke, thereby improving the quality of the cut samples. The iqualitrol iCut-80A can operate in both manual and automatic cutting modes.
iCut-80A features safety protection and operational prompts, facilitating better interaction between the machine and the operator.
The large-capacity cutting chamber makes it easier for the operator to use, making it one of the essential sample preparation devices for colleges, universities, and factories for metallographic testing.
Technical Specifications:
| Model | iCut-80A |
| Input voltage | Three-phase 380V 50Hz |
| Spindle speed | 2100 RPM |
| Cutting disc specifications | φ350×2.5×32mm |
| Maximum cutting diameter | φ80mm |
| Automatic cutting stroke | 125mm |
| Maximum table movement | 240mm |
| Input power | 2.5KW |
| Feed speed | 1-15mm/min |
| Table size | 320mm×293mm |
| Overall dimensions | 890mm×700mm×610mm |
| Net weight | 220kg |
| Net weight of the water tank | 14kg (including pump) |
