| ICut-100A: | Max Cut Diameter φ100mm | Cutting Chamber: | Easy Operation In Large-capacity Cutting Chamber |
|---|---|---|---|
| Cutting Modes: | Both Manual And Automatic Cutting | Cooling System: | Water Cooling With Circulation Tank |
| Cutting Blade: | φ350×2.5×32mm | Cutting Table: | 145 * 240mm |
| Highlight: | High Speed Centrifuge Over Temperature Protection,High Speed Centrifuge Microprocessor Control |
||

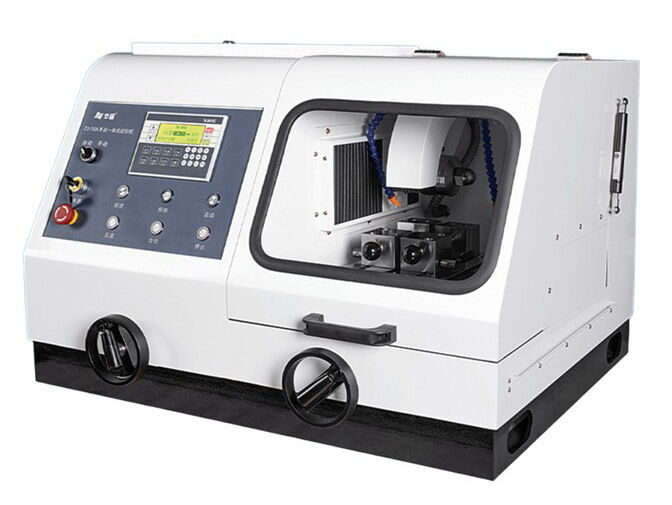

Large Cutting Chamber Automatic Metallographic Cutting Machine iCut-100A
Brief Introduction:
The iqualitrol iCut-100A consists of components such as the body, electrical control box, cutting chamber, motor, cooling system, and cutting wheel.
The machine cools the sample through the cooling system to prevent overheating and damage to the tissue during the cutting process.
The iqualitrol iCut-100A also allows for the selection of three different cutting modes based on the type of sample being cut, and enables the setting of cutting speed and stroke, thereby improving the quality of the cut samples.
The machine can operate in both manual and automatic cutting modes. It features safety protection and operational prompts, facilitating better interaction between the machine and the operator.
The large-capacity cutting chamber makes it easier for the operator to use, making it one of the essential sample preparation devices for colleges, universities, and industrial enterprises in metallographic testing.
Technical Specifications:
| Model | iCut-100A |
| Input voltage | Three-phase 380V 50Hz |
| Spindle speed | 2100 RPM |
| Cutting disc specifications | φ350×2.5×32mm |
| Maximum cutting diameter | φ100mm |
| Automatic cutting stroke | 145mm |
| Maximum table movement | 240mm |
| Input power | 3.2KW |
| Feed speed | 1-15mm/min |
| Table size | 320mm×293mm |
| Overall dimensions | 890mm×700mm×610mm |
| Net weight | 240kg |
| Net weight of water tank | 14kg (including pump) |
