Product Details:
Payment & Shipping Terms:
|
| TG20: | Max Speed 21000rpm | Cover Protection: | 3 Tiers Protection Steel Cover, Stainless Steel Chamber, Safe And Reliable |
|---|---|---|---|
| Program: | 10 Kinds Of Program Stored In The Memory, 10 Kinds Of Accelerating And Decelerating Speed | Digital Display: | Real Time Display Speed And RCF (reactive Centrifugal Force) |
| Advantages: | Automatically Electric Lid Lock, Super Speed, Over Temperature Protection And Imbalance Protection | Motor: | Simpler Construction, More Reliable Performance, Longer Life And Quietly Running |
| High Light: | High Speed Centrifuge Over Temperature Protection,High Speed Centrifuge Microprocessor Control |
||

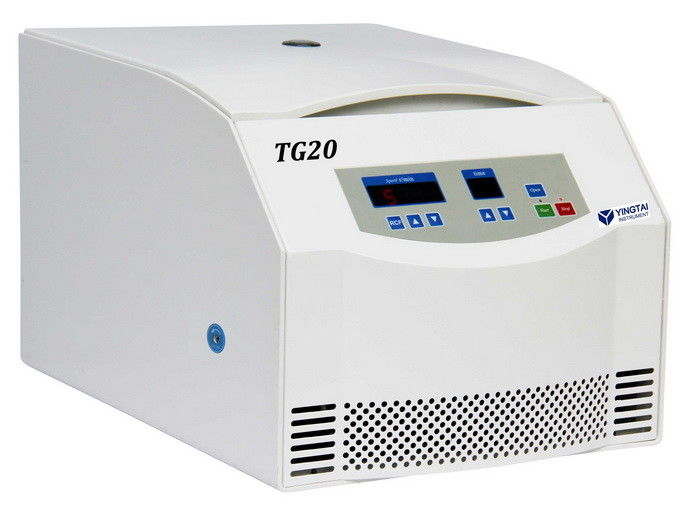

Over temperature protection TG20 High Speed Centrifuge Microprocessor control
Features:
1. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control.
5. Digital display in time, speed and RCF (reactive centrifugal force).
6. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
7. 3 tiers protection steel cover, stainless steel chamber, safe and reliable.
TG20Technical Parameter:
| Max. Speed | 21000rpm |
| Max. RCF | 30910×g |
| Max. Capacity | 6×100ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | Normal |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | / |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 513×370×320mm |
| Net Weight(Kg) | 42KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TG20:
| Order No. | Rotor No. | Max Speed (rpm) |
Max Volume (ml) |
Max.RCF(×g) |
| NO30801 | Angle Rotor | 21000 | 12×1.5/2ml | 30910 |
| NO30802 | Angle Rotor | 15000 | 40×0.5ml | 22920 |
| NO30803 | Angle Rotor | 17000 | 24×1.5/2ml | 26460 |
| NO30804 | Angle Rotor | 13500 | 30×1.5/2ml | 19340 |
| NO30805 | Angle Rotor | 16000 | 16×5ml | 22020 |
| NO30806 | Angle Rotor | 14000 | 12×7ml | 21380 |
| NO30407 | Angle Rotor | 10000 | 12×15ml | 11840 |
| NO30808 | Angle Rotor | 15000 | 12×10ml | 22680 |
| NO30809 | Angle Rotor | 15000 | 8×20ml | 22680 |
| NO30810 | Angle Rotor | 14000 | 6×30ml | 19060 |
| NO30811 | Angle Rotor | 12000 | 6×50ml | 16050 |
| NO30812 | Angle Rotor | 12000 | 6×70ml | 15570 |
| NO30813 | Angle Rotor | 12000 | 4×100ml | 14850 |
| NO30814 | Angle Rotor | 12000 | 6×100ml | 14850 |
| NO30815 | Angle Rotor | 16000 | 6×10ml | 21500 |
| NO30816 | Angle Rotor | 18000 | 30×0.5ml | 26660 |
| NO30844 | Angle Rotor | 13500 | 48×1.5/2ml | 17930 |
| NO30676 | Microplate | 4000 | 2×3×48 well | 2300 |
