| TGL16E: | High Speed 16000rpm Micro Refrigerated Centrifuge | Compressor: | Fluorine-free Compressor, Fast In Cooling. |
|---|---|---|---|
| Cover Protection: | 3 Tiers Protection Steel Cover, Safe And Reliable | Centrifuge Body: | High Quality Steel Frame, Safe And Reliable |
| Brushless Frequency Motor: | Simpler Construction, More Reliable Performance, Longer Life And Quietly Running. | Microprocessor Control: | LCD Display, Touch Panel, Parameters In Running Can Be Edited And Change |
| Highlight: | Brushless Frequency Motor Micro Refrigerated Centrifuge,Micro Refrigerated Centrifuge With Touch Panel |
||

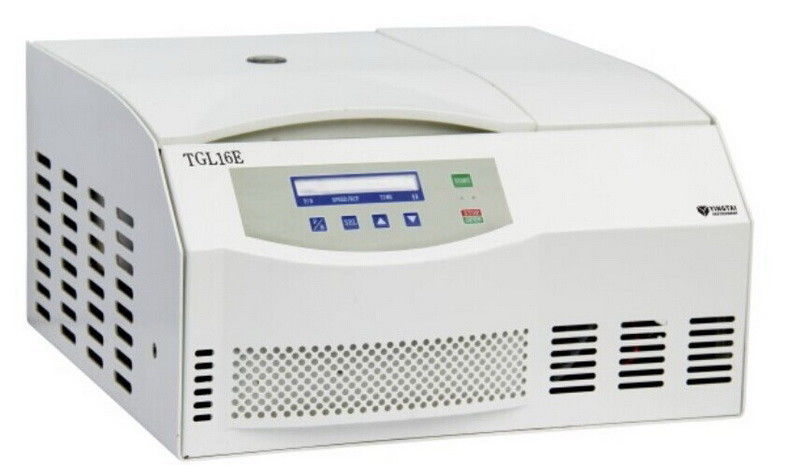

Brushless frequency motor TGL16E High Speed Micro Refrigerated Centrifuge
Features:
1. Microprocessor control, LCD display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.
2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
3. Automatic lid lock.
4. Adapters are available by experiment requirements.
5. 3 tiers protection steel cover, safe and reliable.
6. Adopting efficient fluorine-free compressor, fast in cooling.
7. High quality steel frame, safe and reliable.
Technical Specifications:
| Max. Speed | 16000rpm |
| Max. RCF | 19040×g |
| Max. Capacity | 10×5ml |
| Time Range | 0~99h59min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | -20℃-40℃ |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 480×480×275mm |
| Net Weight(Kg) | 43KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TGL16E:
| Order No. | Rotor No. | Max Speed (rpm) |
Max Volume (ml) |
Max.RCF(×g) |
| NO31001 | Angle Rotor | 16000 | 40×0.2ml | 19040 |
| NO31002 | Angle Rotor | 16000 | 24×0.5ml | 18480 |
| NO31003 | Angle Rotor | 16000 | 12×1.5/2ml | 16260 |
| NO31004 | Angle Rotor | 16000 | 10×5ml | 17880 |
| NO31005 | Angle Rotor | 14000 | 20×1.5/2ml | 15580 |
| NO30403 | Angle Rotor | 14000 | 24×1.5/2ml | 17950 |
| NO30448 | PCR Rotor | 13000 | 8×8PCR | 11540 |
