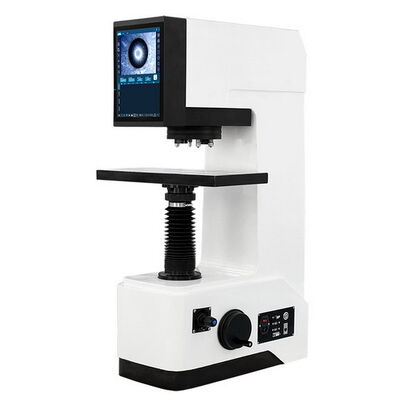

| Turret: | 4 Ball Indenters And Two Sets (1x And 2x) Of Objective Lenses | Touch Screen: | Set Test Force, Dwell Time, Adjust Light Source, Display Indentation Length, Hardness Value |
|---|---|---|---|
| Test Report: | WORD Or EXCEL Reports, Which Can Be Directly Saved Or Output By An External Printer | Interface Modes: | USB Interface, RJ45LAN, WLAN, RS232 Port |
| Software Function: | Calibrate, Manually Fine-tune, Set Upper And Lower Limit Alarms | Auto Lifting Platform: | Adopts Precise Structure And Has High Stability |
| Highlight: | Microprocessor Control Low Speed Centrifuge,Laboratory Low Speed Centrifuge,Biochemistry Low Speed Centrifuge |
||

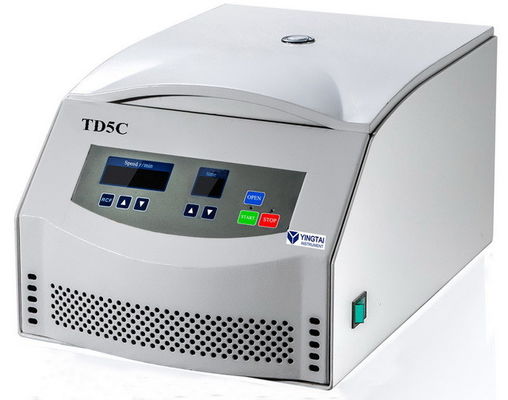

Microprocessor Control TD5C Low Speed Centrifuge for Laboratory and Biochemistry
Features:
1. TD5C centrifuge is of microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.
2. Brushless motor, free maintenance, no powder pollution, quick in speed up and down.
3. The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
4. There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.
5. Micro computer control system, digital display the RCF,time and speed.
6. Electric lid lock, compact design, super speed and imbalance protection.
Technical Specifications:
| Max. Speed | 5000rpm |
| Max. RCF | 3460×g |
| Max. Capacity | 4×180ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | Normal |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | / |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 485×320×255mm |
| Net Weight(Kg) | 23KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TD5C:
| Order No. | Rotor No. | Max Speed (rpm) |
Max Volume (ml) |
Max.RCF (×g) |
| NO5C01 | Swing Rotor | 5000 | 6×10ml | 3460 |
| NO5C02 | Angle Rotor | 4000 | 30×7/5ml | 2250 |
| NO5C03 | Angle Rotor | 4000 | 18×10ml | 2250 |
| NO5C04 | Angle Rotor | 4000 | 24×10ml | 2200 |
| NO5C05 | Angle Rotor | 4000 | 12×15/7/5ml | 2150 |
| NO5C06 | Angle Rotor | 4000 | 12×20ml | 2220 |
| NO5C07 | Angle Rotor | 5000 | 6×15ml | 2540 |
| NO5C08 | Angle Rotor | 5000 | 12×15ml | 3080 |
| NO5C09 | Angle Rotor | 5000 | 4×50ml | 2520 |
| NO5C10 | Angle Rotor | 5000 | 6×50ml | 2850 |
| NO5C11 | Angle Rotor | 5000 | 4×100ml | 2630 |
| NO5C12 | Angle Rotor | 5000 | 6×100ml | 3130 |
