| TD5: | Industrial Lab Universal Centrifuge Protection Cover | Protection Steel Cover: | 3 Tiers Protection Steel Cover, Safe And Reliable |
|---|---|---|---|
| Advantage: | Automatic Lid Lock, Super Speed, Over Temperature Protection And Imbalance Protection | Centrifuge Body: | Made Of High Quality Steel, Safe And Reliable |
| Brushless Frequency Motor: | Simpler Construction, More Reliable Performance, Longer Life And Quietly Running. | Digital Display: | Touch Panel, Parameters In Running Can Be Edited And Change To Display Other Running Parameter And RCF |
| Highlight: | Microprocessor Digital Display Industrial Lab Centrifuge,Universal Industrial Lab Centrifuge,Microprocessor Digital Lab Centrifuge Machine |
||

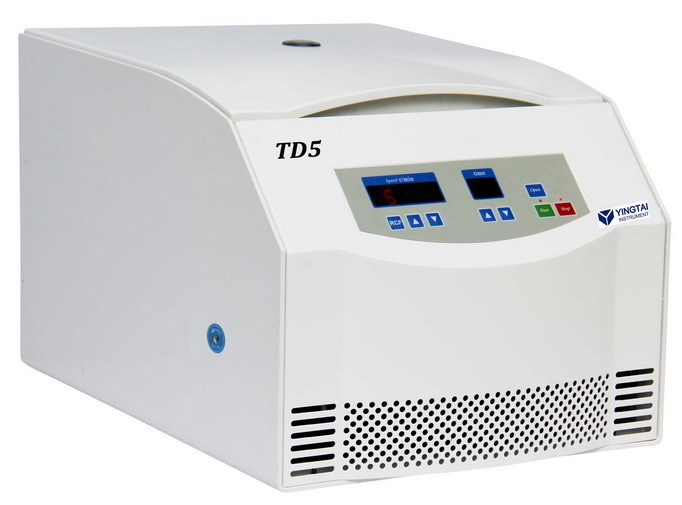

Microprocessor Digital Display TD5 Industrial lab Universal Centrifuge protection cover
Features:
1. Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.
2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
3. Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
4. Adapters are available by experiment requirements.
5. 3 tiers protection steel cover, safe and reliable.
6. TUV CE EMC certificate.
Technical Specifications:
| Max. Speed | 5000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×250ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | Normal |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | / |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 570×400×320mm |
| Net Weight(Kg) | 40KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TD5:
| Order No. | Rotor | Max Speed (rpm) |
Max Volume (ml) |
Max. RCF(×g) |
| NO30569 | Swing Rotor | 4000 |
4×250ml (Round Cup) |
2880 |
| NO30568 | Swing Rotor | 4000 |
4×250ml (Square Cup) |
2830 |
| NO31377 | Swing Body | |||
| Bucket | 5000 | 4×1×50ml | 4730 | |
| 4×1×100ml | 4730 | |||
|
4000 |
4×2×50ml | 2950 | ||
| 4×4×15ml | 2950 | |||
| 4×6×15ml | 2950 | |||
| 4×10×10ml | 2880 | |||
| 4×12×7ml | 2760 | |||
| 4×12×5ml | 2480 | |||
| 4×8×10/7/5ml | 2580 | |||
| 4×4×10/7/5ml | 2580 | |||
| NO30607 | Angle Rotor | 5000 | 12×15ml | 3080 |
| NO30611 | Angle Rotor | 5000 | 6×50ml | 2850 |
| NO30640 | Angle Rotor | 5000 | 4×50ml | 2520 |
| NO30613 | Angle Rotor | 5000 | 4×100ml | 2630 |
| NO30639 | Angle Rotor | 5000 | 24×15ml | 3500 |
| NO30641 | Angle Rotor | 5000 | 12×50ml | 3860 |
| NO30614 | Angle Rotor | 5000 | 6×100ml | 3130 |
| NO30642 | Angle Rotor | 4000 | 12×100ml | 2970 |
| NO31376 | Microplate Rotor | 4000 | 2×3×48 Well | 2300 |
| NO30664 | 4000 | 2×2×96Well | 2490 | |
Adapter for 250 round cup and square cup:
|
Volume |
5ml |
7ml
|
10ml
|
15ml
|
50ml
|
|
250ml (Square) |
9pcs/cup | 9 | 9 | 4 | 1 |
|
250ml (Round) |
7pcs/cup | 7 | 7 | 4 | 1 |
