| Model: | VXQ-1 | Capacity: | Can Hold Up To 12 Samples (40mm Diameter) |
|---|---|---|---|
| Program: | 80 Sets Of Process Parameters Can Be Saved And Recalled | Advantages: | Built-in Low-noise Vacuum Pump, Fast Vacuuming Speed, High Vacuum Degree. |
| Time Cycle: | 0~99min, Automatic Pumping/deflating,auto Cycling | Application: | Failure Analysis Samples Of Cracked, Porous Castings |

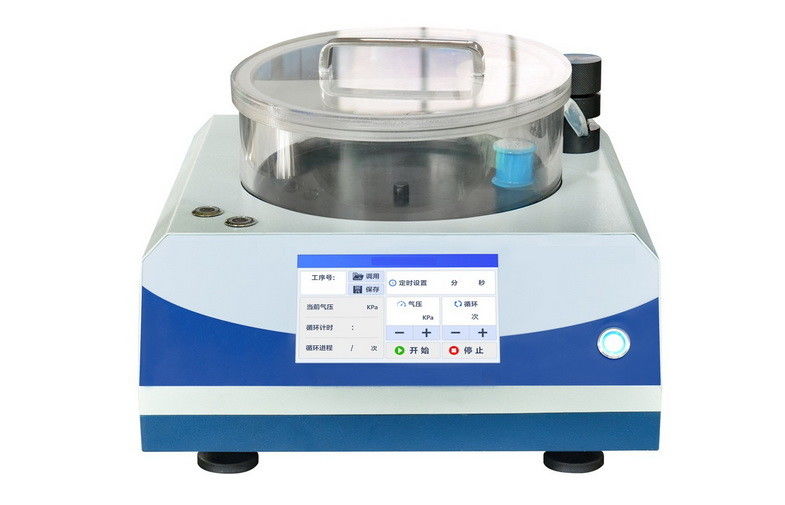

Large Capacity High Speed Automatic Vacuum Mounting Press VXQ-1
Technical Data Download: iqualitrol Vacuum Mounting Press VXQ-1
Main Feature:
1. Built-in low-noise vacuum pump, fast vacuuming speed and high vacuum degree.
2. Fully transparent ultra-large vacuum chamber, which can hold up to 12 samples (40mm diameter).
3. Program control can set the vacuum degree, cycle number and corresponding time, and automatically complete the entire inlay process of multiple samples, multiple vacuuming, maintaining vacuum, and deflation cycles.
4. Electric rotating table and manual knob pouring, convenient and fast.
5. According to different materials and samples, 80 sets of process parameters can be saved and recalled.
Brief Introduction:
Mounting is a very important step in the preparation process of metallographic specimens, especially for some tiny samples that are difficult to hold, irregularly shaped specimens that require edge protection, or specimens that require automatic grinding and polishing.
The iqualitrol latest VXQ-1 vacuum mounting machine has a compact design, large capacity, simple and fast operation, and high equipment reliability. The built-in vacuum pump can evacuate quickly and effectively.
It is suitable for vacuum cold mounting of epoxy resin. It can effectively remove bubbles in the sample and resin, allowing the resin to penetrate into the pores and cracks of the sample to obtain a sample without bubbles and pores, improve the final mounting effect of the specimen.
It is very suitable for porous materials, such as the preparation of failure analysis specimens for cracks, porous castings and composite materials, electronic components, rocks, minerals, ceramics, etc.
Application:
VXQ-1 is used for the preparation of failure analysis samples of cracked, porous castings and composite materials, electronic components, rock minerals, ceramics and other samples.
Technical Specifications:
| Model | VXQ-1 |
| Vacuum degree | 0~-80kPa |
| Vacuum flow | 10~20L/min |
| Noise | ≤55dB |
| vacuum chamber |
Φ250mm×85mm can hold up to 12 samples (40mm diameter). |
| Work panel control | Clockwise and counterclockwise |
| Operation | Touch Screen, |
| timing cycle | 0~99min, Automatic pumping/deflating,auto cycling |
| Max cycling times | 99 times |
| Program saving | 80 groups |
| Power supply | AC220V, 50Hz, 10A |
| Dimension | 462×400×310mm |
| Net weight | 24KG |
